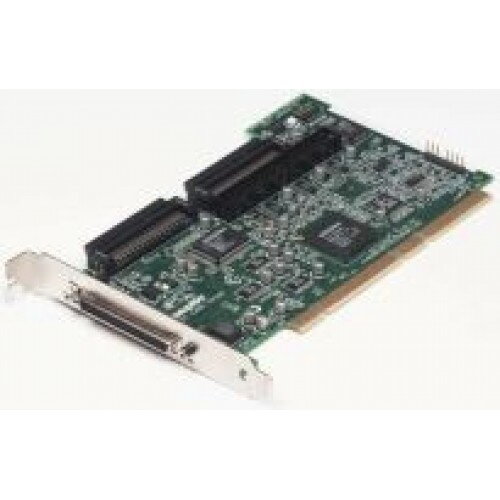

Adaptec ASC-29160/FSC3

This 64-bit PCI-to-SCSI adapter performs at up to 160 MB per second and allows for the connection of fifteen SCSI devices. Provides an internal 68-pin LVD SCSI connector, an internal 68-pin Ultra Wide SCSI connector, an internal 50-pin Ultra SCSI connector, and an external 68-pin LVD SCSI connector
Key Differentiators

64-bit PCI (32-bit compatible)

Customer Needs

Total performance solution on a single channel card

System Environment

Server

Number of devices

15 devices

Bus System Interface Type



64-bit PCI (32-bit compatible)

External Connectors

One 68-pin HD for LVD SCSI devices

Internal Connectors

One 68-pin for LVD SCSI

One 68-pin for Ultra Wide SCSI

One 50-pin for Ultra SCSI

Data Transfer Rate

160 MB/sec

System Requirements

Intel PC or equivalent

Available PCI slot



Package Contents

Adaptec SCSI Card 29160

Adaptec EZ-SCSI software

Operating system drivers

5-position 68-pin LVD internal cable with terminator (1831200-R)

3-position 68-pin Ultra Wide SCSI internal cable

3-position 50-pin internal cable

Complete user documentation

Warranty card



Warranty

5-year materials and workmanship warranty



Board Dimensions
6.87" x 3.87"
Regulatory Certification
FCC, UL, C-tick, CE, VCC


Mean Time Before Failure (MTBF)
561,251 hours at 40 degrees C
