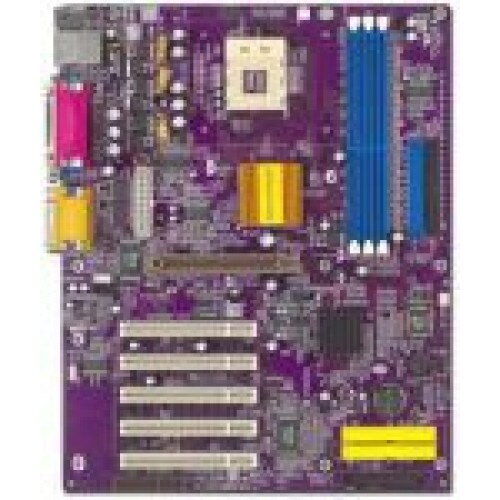

ECS P4VXAD+

SPECS:

CPU
Socket 478 for Intel Pentium 4 processor
FSB 533/400 MHz
CHIPSET
VIA® P4X333 & VT8235
North Bridge: VIA® P4X333
South Bridge: VIA® VT8235
MEMORY
3 x184-pin DDR DIMM socket support up to 3 GB
Support DDR333/266 DDR SDRAM
EXPANSION SLOT
1 x AGP 4X slot
5 x PCI slots
1 x CNR slot
STORAGE
Support by VIA® VT8235
4 x Ultra DMA133/100/66 devices
AUDIO
C-Media CMI9739A 6-channel audio CODEC
Compliant with AC'97 2.2 specification
LAN
VIA® VT6103 10/100 Mbps Fast Ethernet PHY
REAR PANEL I/O
1 x PS/2 keyboard & PS/2 mouse connectors
2 x USB ports
1 x RJ45 LAN connector
1 x Parallel port (LPT1)
1 x Serial port (COM1)
1 x Game port
1 x Audio port (Line-in, Line-out, Mic-in)
INTERNAL I/O CONNECTORS & HEADERS
1 x 20-pin ATX Power Supply Connector
1 x FDD connector supports one 360K~2.88MB FDD
2 x IDE connectors
1 x IrDA for SIR header
1 x Speaker header
2 x USB 2.0 headers support additional 4 USB 2.0 Ports
1 x SPDIF out header
1 x Front panel switch/LED header
1 x Front panel audio header
1x CD in header
CPUFAN/CASFAN connectors
SYSTEM BIOS
Award BIOS with 2Mb Flash ROM
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
Supports ACPI revision 1.0 specification
FORM FACTOR
ATX Size 305mm*244mm
