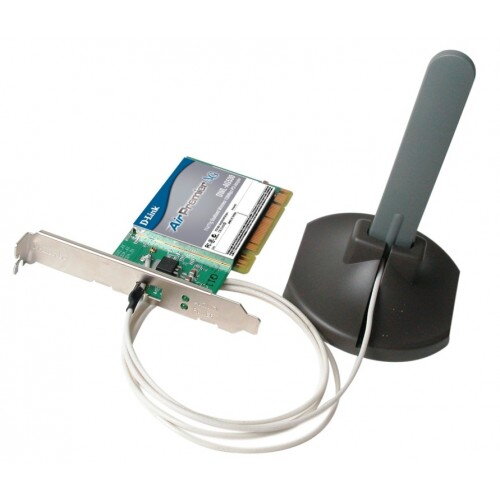

D-Link DWL-AG530 Wireless Adapter IEEE 802.11a/b/g + low profile

Model

Brand

D-Link

Model

DWL-AG530
Spec

Standards

IEEE 802.11a/b/g

Wireless Data Rates

Up to 108Mbps

Security

64-, 128-, 152-WEP

802.1x

WPA—Wi-Fi Protected Access (64-, 128-WEP with TKIP, MIC, IV Expansion, Shared Key Authentication

Supports Advanced Encryption Standard (AES)

Interface

32-bit PCI

Frequency Band

2.4GHz to 2.5GHz

5.260GHz to 5.825GHz

Modulation

Orthogonal Frequency Division Multiplexing (OFDM)

Complementary Code Keying (CCK)

Direct Sequence Spread Spectrum (DSSS)

Transmitted Power

15dBm ± 2dB

Antenna

Omni Direction Diople Antenna with 2~4 dbi gain

Operating Range

Indoors: Up to 328 ft (100 meters)

System Requirements

Windows 98 SE

Windows ME

Windows 2000

Windows XP

Dimensions

6.6" x 4.2" x 0.2"

Weight

0.17 lbs.

Temperature

0°C - 55°C (32°F - 131°F)

Humidity

95% Maximum, Non-Condensing

Windows Vista

Certified for Windows Vista
Feature

Features

Up to 108Mbps

Versatile use of 2.4GHz or 5GHz frequency

Enhanced Security Features

802.11g, 802.11b, 802.11a Compatible
Packaging

Package Contents

DWL-AG530

Resource Disk

External Antenna

Bracket

Other Accessories
