Popis

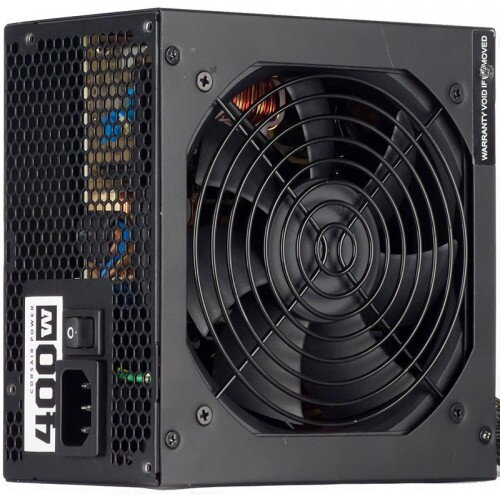

Corsair Builder Series CX400 Features:
Supports the latest ATX12V v2.2 standard and is backwards compatible with ATX12V 2.01 systems.
Rated up to 400W of continuous power output at 40ºC
Extra long fully sleeved cables to support full tower chassis and assist with flexible cable routing.
Ultra-quiet 120mm double ball-bearing fan delivers excellent airflow at an exceptionally low noise level by varying the RPM in response to temperature.
High efficiency topology to ensure energy savings.
99% Active Power Factor Correction provides clean and reliable power to your system.
Universal AC input 90~264V automatically scans and detects the correct voltage. No more hassle of flipping that red switch!
Dedicated single +12V rail offers maximum compatibility with latest components
Over Current/Voltage/Power Protection, Under Voltage Protection, and Short Circuit Protection provide maximum safety to your critical system components.
Standard ATX PS/2 size: 5.9"(W) x 3.4"(H) X 5.5"(L); 150mm(W) x 86mm(H) x 140mm(L)
MTBF: 100,000 Hours
Model
Brand
CORSAIR
Model
CMPSU-400CX
Spec
Type
ATX12V V2.2
Maximum Power
400W
Fans
120mm double ball-bearing fan
Main Connector
20+4Pin
+12V Rails
Single
PCI-Express Connector
1 x 6-Pin
SATA Power Connector
6
Energy-Efficient
80 PLUS Certified
Output
+3.3V@20A, +5V@20A, +12V@30A, -12V@0.8A, +5VSB@2.5A
MTBF
gt;100,000 Hours
Features
Connectors
1 x Main connector (20+4Pin)
1 x 4-Pin/8-Pin EPS Connector
6 x Peripheral
6 x SATA
2 x Floppy
1 x PCI-E
Features
High efficiency topology to ensure energy savings
99% Active Power Factor Correction provides clean and reliable
power to your system
Universal AC input 90~264V automatically scans and detects
the correct voltage. No more hassle of flipping that tiny red
switch
Dedicated single +12V rail offers maximum compatibility with
latest components
Over Current/Voltage/Power Protection, Under Voltage
Protection, and Short Circuit Protection provides maximum safety to critical system
Components
Extra long cables support full tower chassis
Compatible with Core i7
Supports the latest ATX12V v2.2 standard and is backwards compatible with ATX12V 2.01 systems.
Rated up to 400W of continuous power output at 40ºC
Extra long fully sleeved cables to support full tower chassis and assist with flexible cable routing.
Ultra-quiet 120mm double ball-bearing fan delivers excellent airflow at an exceptionally low noise level by varying the RPM in response to temperature.
High efficiency topology to ensure energy savings.
99% Active Power Factor Correction provides clean and reliable power to your system.
Universal AC input 90~264V automatically scans and detects the correct voltage. No more hassle of flipping that red switch!
Dedicated single +12V rail offers maximum compatibility with latest components
Over Current/Voltage/Power Protection, Under Voltage Protection, and Short Circuit Protection provide maximum safety to your critical system components.
Standard ATX PS/2 size: 5.9"(W) x 3.4"(H) X 5.5"(L); 150mm(W) x 86mm(H) x 140mm(L)
MTBF: 100,000 Hours
Model
Brand
CORSAIR
Model
CMPSU-400CX
Spec
Type
ATX12V V2.2
Maximum Power
400W
Fans
120mm double ball-bearing fan
Main Connector
20+4Pin
+12V Rails
Single
PCI-Express Connector
1 x 6-Pin
SATA Power Connector
6
Energy-Efficient
80 PLUS Certified
Output
+3.3V@20A, +5V@20A, +12V@30A, -12V@0.8A, +5VSB@2.5A
MTBF
gt;100,000 Hours
Features
Connectors
1 x Main connector (20+4Pin)
1 x 4-Pin/8-Pin EPS Connector
6 x Peripheral
6 x SATA
2 x Floppy
1 x PCI-E
Features
High efficiency topology to ensure energy savings
99% Active Power Factor Correction provides clean and reliable
power to your system
Universal AC input 90~264V automatically scans and detects
the correct voltage. No more hassle of flipping that tiny red
switch
Dedicated single +12V rail offers maximum compatibility with
latest components
Over Current/Voltage/Power Protection, Under Voltage
Protection, and Short Circuit Protection provides maximum safety to critical system
Components
Extra long cables support full tower chassis
Compatible with Core i7
