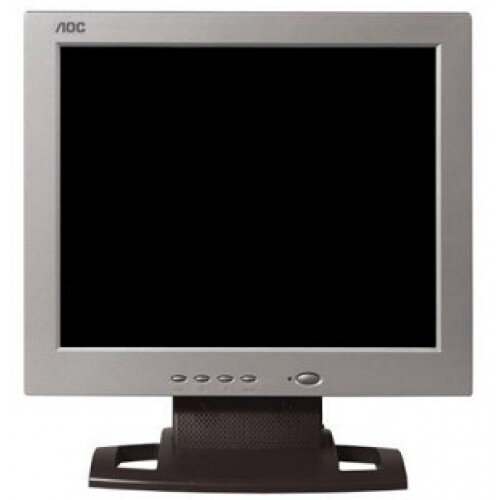

AOC TFT1780+ LM720, 17" LCD

Manufacturer
AOC
Manufacturer Part #
LM720
LCD
Type
TFT Active Matrix LCD
Surface
Hard-Coating (3H)

Anti-Glare
Display Area
Horizontal: 13.3"

Vertical: 10.6"

Diagonal: 17" (17" Viewable)
Pixel Pitch
0.264 mm
Resolution
1280 x 1024 @ 75Hz (Max)

1280 x 1024 @ 60Hz (Recommended)
Brightness
250 cd/m2
Contrast Ratio
350:1
Viewing Angle
Horizontal: 150°

Vertical: 125°
Response Time
25 ms
Cabinet Color
Silver
Cabinet Depth
2.1"
Signal Input
Input Video

Signal
Analog: RGB (0.7Vp-p)
Frequency
Horizontal: 30 - 80 kHz

Vertical: 55 - 75 Hz
Bandwidth
135 MHz
Input Connectors
15-pin Mini D-sub (x 1)
Included Signal

Cable
15-pin Miniature D-sub Connector
Power

Requirements
Voltage
100 - 240 VAC, 60/50 Hz
Consumption
45 W (Max)
Misc. Features
Emissions

Standard
FCC Class B

TCO '99
Plug amp; Play
DDC 1/2B
Additional Features
Energy Star Compliant
Dimensions

(W x H x D)
Unit
16.0" x 16.7" x 8.5" (with Base)

16.0" x 13.8" x 2.1" (without Base)
As Shipped
19.4x21.7x8.4
Weight
Unit
11 lbs.
As Shipped
14 lbs.
System Requirements
PC
All Windows OS
Mac
All Mac OS
