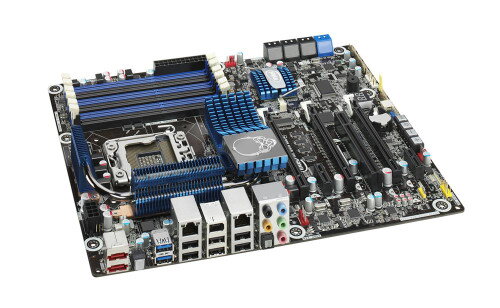

Intel Desktop Board DX58SO2

Product CollectionLegacy Intel® Desktop Boards
Supplemental Information
Marketing StatusDiscontinued
Launch Date Q4'10
Expected Discontinuance 2012
Embedded Options Available No
DatasheetView now
Memory & Storage
Max Memory Size (dependent on memory type) 24 GB
# of Memory Slots6
Memory Types DDR3 2000+
Max # of Memory Channels 3
ECC Memory Supported ‡ Yes
I/O Specifications
# of USB Ports14
USB 2.0 Configuration (External + Internal)6+6
USB 3.0 Configuration (External + Internal)2
Total # of SATA Ports 10
Max # of SATA 6.0 Gb/s Ports2
# of eSATA Ports2
RAID Configuration 0,1,5,10
Audio (back channel + front channel)8+2
S/PDIF Out Connector1
Integrated LAN Dual Gig LAN
Consumer Infrared Rx Sensor Yes
Firewire 1 1
Expansion Options
PCI Support 1
PCIe x1 Gen 2.x 2
PCIe x16 Gen 2.x 3
Package Specifications
Max CPU Configuration1
Board Form FactorATX
Advanced Technologies
Intel® HD Audio Technology Yes
Intel® Rapid Storage Technology Yes
