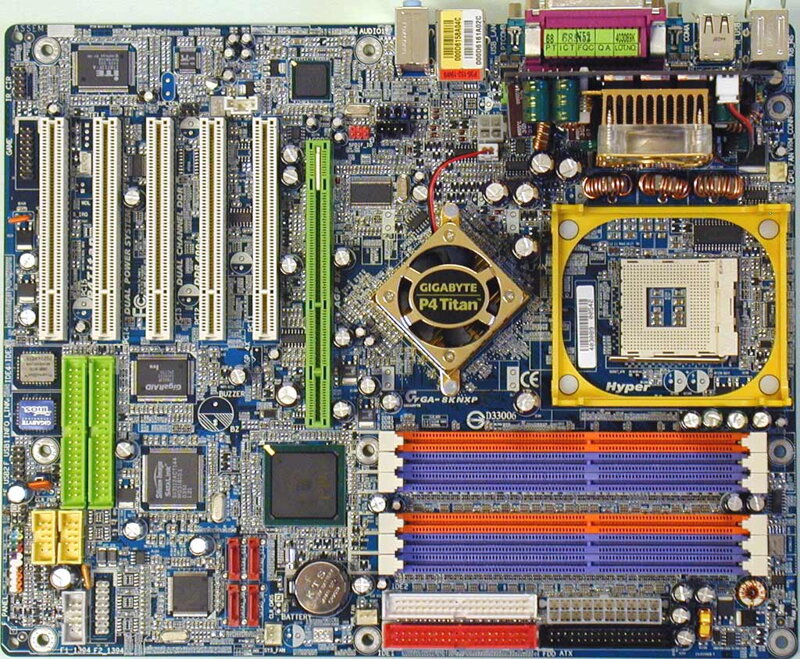

Gigabyte GA-8KNXP

Vrátane original príslušenstva DPS2 modul, I/O shield krytka, prídavné Audio a USB bracket, 2xIDE, Floppy, SATA káble

CPU
Socket 478 for Intel® Pentium® 4 processor.
Front Side Bus
800 / 533 / 400 MHz FSB

Chipset
North Bridge : Intel® 875P MCH
South Bridge : Intel® ICH5R
Integrated Peripherals :
Intel® CSA interface Gigabit Ethernet Controller
Silicon Image Serial ATA chip
Texas Instrument IEEE 1394 chip
GigaRAID controller chip
Realtek ALC658 CODEC

Memory
Type: Dual Channel DDR 400 / 333 / 266 ECC support
Max capacity: 4 GB (Please read FAQ for further information)
DIMM slots: 6 *
*Note: Through GIGABYTE innovation of supporting 6 DIMMS memory on Intel chipset motherboard. However, due to chipset limitations there will be a frequency downgrade of memory modules when 6 DIMMs are fully loaded.

Expansion Slots
1 x AGP Pro slot
5 x PCI slots (PCI 2.3 compliant)
1 x DPS slot

Internal I/O Connectors
4 x Serial ATA connectors
2 x IEEE 1394 pin headers
2 x USB 2.0 (supports 4 ports by cable)
2 x UltraDMA 133/100/66 Bus Master IDE (For HDDs only)
2 x UltraDMA 100/66 Bus Master IDE
1 x FDD
1 x S/P-DIF input/output pin header
CD/AUX in
1 x Game port pin header

Back Panel Connectors
4 x USB 2.0 ports
1 x RJ45 LAN port
1 x LPT port
2 x COM ports
3 x Audio ports (Line-in / Line-out / MIC)
2 x PS/2 ports (Keyboard/Mouse)

H/W Monitoring
ITE 8712F
System health status auto-detect and report by BIOS
Hardware detecting and reporting for case open, power-in voltage, CPU voltage, and fan speed.
BIOS
2 x 4M bit flash ROM, Award BIOS
Form Factor
ATX
30.5cm x 24.4cm

Driver
Intel® chipset software installation utility
Silcon Image Serial ATA driver
GigaRAID IDE RAID driver
Intel® RAID Driver
Intel® PRO/1000 CT LAN driver
Realtek audio driver
USB2.0 driver
Other Features
Xpress Install
Xpress Recovery
Smart Fan
EasyTune™ 4
@BIOS
Q-Flash™
Multi Language BIOS
