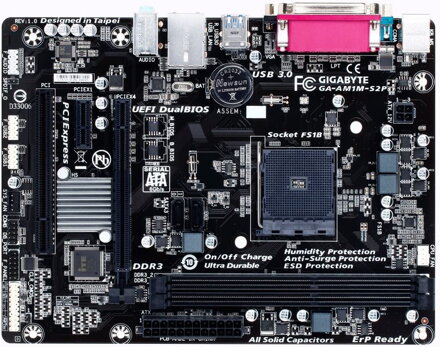

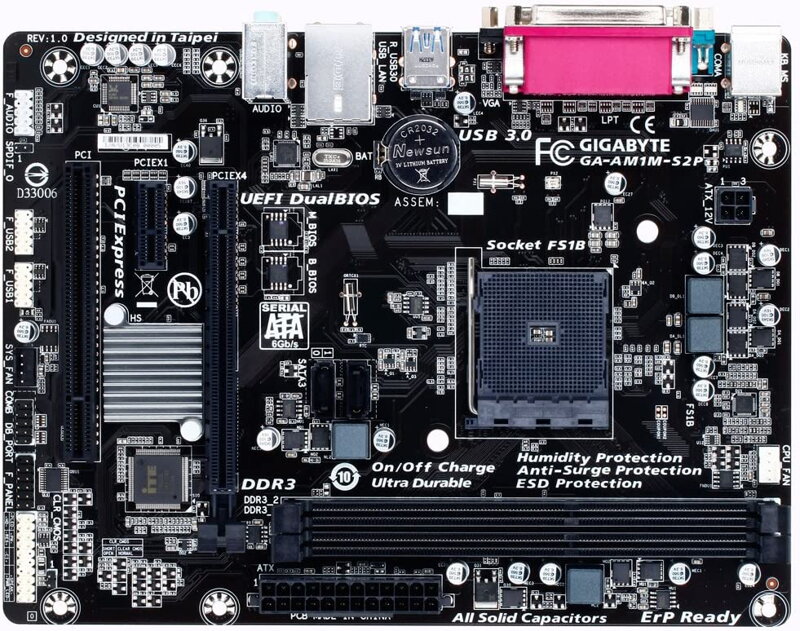

Gigabyte  GA-AM1M-S2P + Athlon 5350 APU

Gigabyte GA-AM1M-S2P + Athlon 5350 APU

Set základná doska Gigabyte GA-AM1M-S2P + Athlon 5350 APU Čítajte viac

Vypredané

60 €

50 € bez DPH

Popis

Mobo info:

APU
FS1b Socket:
AMD Athlon™ series processors
AMD Sempron™ series processors
(Please refer "CPU Support List" for more information.)
Memory
2 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Support for DDR3 1600/1333 MHz memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor:
1 x D-Sub port, supporting a maximum resolution of 1920x1200
Maximum shared memory of 2 GB
Audio
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x1 slot
(The PCI Express slots conforms to PCI Express 2.0 standard.)
1 x PCI slot
Storage Interface
Integrated in the APU:
2 x SATA 6Gb/s connectors
USB
Integrated in the APU:
2 x USB 3.0/2.0 ports on the back panel
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
2 x SATA 6Gb/s connectors
1 x APU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x Clear CMOS jumper
Back Panel Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x parallel port
1 x serial port
1 x D-Sub port
2 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
System voltage detection
APU/System temperature detection
APU/System fan speed detection
APU overheating warning
APU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
2 x 32 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for @BIOS
Support for Q-Flash
Support for Xpress Install
Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.
Support for Smart Recovery 2
Support for ON/OFF Charge
Bundled Software
Norton® Internet Security (OEM version)
Operating System
Support for Windows 8.1/8/7 32-bit/64-bit
Support for Windows XP 32-bit
* Only support SATA IDE mode.
Form Factor
Micro ATX Form Factor; 22.6cm x 17.0cm

+I/O shield krytka

CPU info:

Type CPU / Microprocessor
Market segment Desktop
Family AMD Athlon
Model number ? 5350
CPU part numbers
AD5350JAH44HM is an OEM/tray microprocessor
AD5350JAHMBOX is a boxed microprocessor with fan and heatsink
Frequency ? 2050 MHz
Package 721-pin lidded organic micro Pin Grid Array (UOF721)
Socket Socket AM1 / FS1b
Size 1.38" x 1.38" / 3.5cm x 3.5cm
Weight 1oz / 29.5g
Introduction date April 9, 2014
Architecture / Microarchitecture
Microarchitecture Jaguar
Processor core ? Kabini
Core stepping ? KB-A1
CPUID 700F01
Manufacturing process 0.028 micron
Data width 64 bit
The number of CPU cores 4
The number of threads 4
Floating Point Unit Integrated, 128-bit wide
Level 1 cache size ? 4 x 32 KB 2-way set associative instruction caches
4 x 32 KB 8-way set associative write-back data caches
Level 2 cache size ? 2 MB 16-way set associative shared inclusive cache
Level 3 cache size None

+ CPU chladič
