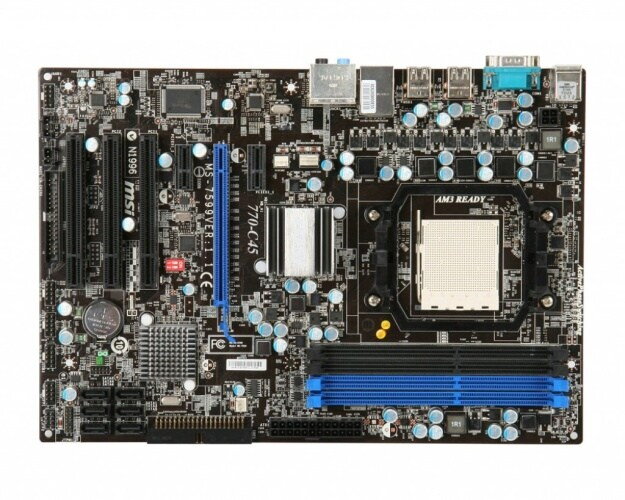

MSI 770-C45 mainboard

CPU

• 64bit AMD® Phenom II CPU.
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Hyper Transport Bus

• HyperTransport 3.0 supporting speed up to 5200MT/s

Chipset

• AMD® 770 and SB710 Chipset

Main Memory

• Supports four unbuffered DIMM of 1.5 Volt DDR3 800/1066/1333/1600* (OC) DRAM, 16GB Max

Slots

• 1 PCI Express x16 slot with x16 operation (PCI Express Bus SPEC V2.0 compliant)
• 2 PCI Express x1 slots
• 3 PCI slots, support 3.3V/ 5V PCI bus Interface.

On-Board IDE

• One IDE port by AMD® SB710
- Supports Ultra DMA 66/100/133 mode
- Supports PIO, Bus Master operation mode
- Can connect up to two IDE devices

On-Board SATA

• 6 SATA II ports by AMD® SB710
- Supports storage and data transfers at up to 3Gb/s

RAID Function

- SATA II 1~6 support RAID 0, 1, or 0+1 mode by AMD® SB710

MSI Reminds You...
• The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk.

Audio

• Chipset integrated by Realtek® ALC888S / ALC885
- True Blu-ray Audio Support
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec

LAN

• Realtek PCI-E GbLAN controller 8111DL
- Integrated Fast Ethernet MAC and PHY in single chip
- Supports 10Mb/s, 100Mb/s and 1000Mb/s
- Compliance with PCI-Express Bus specification v1.0a

Internal I/O Connectors

- ATX 24-pin power connector
- ATX 4-pin 12V CPU power connector
- CPU x 1 / System x 2 FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- Chassis intrusion switch connector
- 3 x USB 2.0 connector support additional 6 ports
- 1 x Floppy disk drive connector
- 6 x Serial ATA II connectors
- 1 x ATA133 connector
- 1 x SPDIF-out connector
- Clear CMOS jumper
- OC Switch
- 1 x TPM module header (optional)

Back Panel I/O Ports

- 1 x PS/2 keyboard
- 1 x PS/2 mouse
- 1 x 6 in 1 audio jack
- 6 x USB 2.0 ports
- 1 x RJ45 LAN jack
- 1 x Serial port

Dimension

• 30.5cm(L) x 21.0cm(W) ATX Form Factor

Mounting

• 6 mounting holes.
