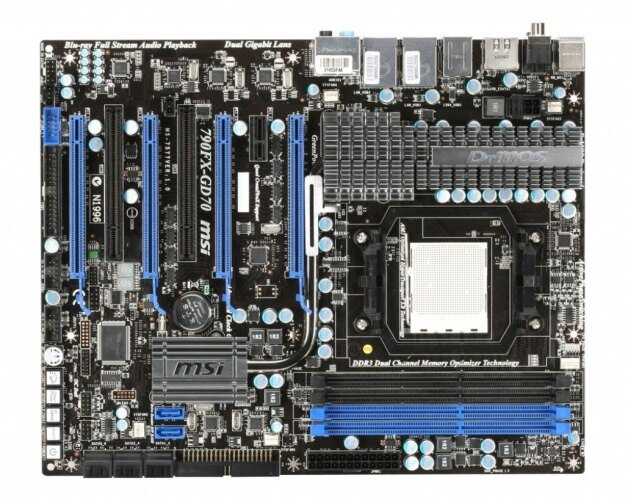

MSI 790FX-GD70 mainboard

CPU

• 64bit AMD® Phenom II CPU.
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Hyper Transport Bus

• HyperTransport 3.0 supporting speed up to 5200MT/s

Chipset

• AMD® 790FX and SB750 Chipset

Main Memory

• Supports four unbuffered DIMM of 1.5 Volt DDR3 800/1066/1333/1600*/1800*/2133* (OC) DRAM, 16GB Max

Slots

• 2 PCI Express x16 slots(PCI_E1 & PCI_E4) support up to PCIE 2.0 x16 speed (PCI Express Bus SPEC V2.0 compliant; supports CrossFire Technology)
• 2 PCI Express x16 slots(PCI_E3 & PCI_E5) support up to PCIE 2.0 x8 speed (PCI Express Bus SPEC V2.0 compliant; supports CrossFire Technology)
• When 4 PCI Express x16 slots are all installed, the PCIE x 16 lanes will auto arrange form x16/ x0/ x16/ x0 to x8/ x8/ x8/ x8
• 1 PCI Express gen2 x1 slots
• 2 PCI slots, support 3.3V/ 5V PCI bus Interface.

On-Board IDE

• One IDE port by AMD® SB750
- Supports Ultra DMA 66/100/133 mode
- Supports PIO, Bus Master operation mode
- Can connect up to two IDE devices

On-Board SATA

• 6 SATA II (1~6) ports by AMD® SB750
• 2 SATA II (7~8) ports by JMicron® JMB322
• 1 eSATA port by JMicron® JMB362
- Supports storage and data transfers at up to 3Gb/s

RAID Function

- SATA II 1~6 support RAID 0, 1, 5, 10 or JBOD mode by AMD® SB750
- SATA II 7~8 support RAID 0, 1, or JBOD mode by JMicron® JMB322

MSI Reminds You...
• The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk.

Audio

• Chipset integrated by Realtek® ALC889
- True Blu-ray Audio Support
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec

LAN

• Dual Realtek PCI-E GbLAN controller 8111DL
- Integrated Fast Ethernet MAC and PHY in single chip
- Supports 10Mb/s, 100Mb/s and 1000Mb/s
- Compliance with PCI-Express Bus specification v1.0a

IEEE1394 / FireWire

• Chipset integrated by VIA® VT6315N
- Transfer rate is up to 400Mbps

Internal I/O Connectors

- ATX 24-pin power connector
- ATX 8-pin 12V CPU power connector
- CPU x 1 / System x 3 FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- Chassis intrusion switch connector
- 2 x USB 2.0 connectors
- 1 x Floppy disk drive connector
- 8 x Serial ATA II connectors
- 1 x ATA133 HD connectors
- Serial port connector
- Clear CMOS button
- Power button
- Reset button
- 1 x SPDIF-Out connector
- 1 x Debug LED
- 1 x IEEE1394 connector support additional 1 port (optional)
- 1 x TPM module header (optional)
MSI Reminds You...
• The floppy disk cable will be optional.

Back Panel I/O Ports

- 1 x PS/2 keyboard
- 1 x PS/2 mouse

- 1 x 6 in 1 audio jack
- 7 x USB 2.0 ports
- 1 x eSATA/USB share port
- 2 x RJ45 LAN jacks
- 1 x coaxial SPDIF-out port
- 1 x optical SPDIF-out port
- 1 x IEEE1394 port (optional)

Dimension

• 30.4cm(L) x 24.5cm(W) ATX Form Factor

Mounting

• 9 mounting holes.
