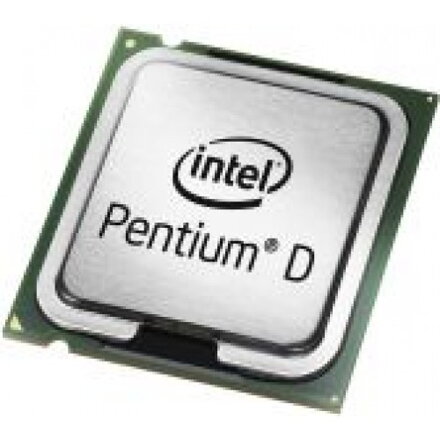

Intel® Pentium® D Processor 805

Product Collection Legacy Intel® Pentium® Processor
Code Name Products formerly Smithfield
Vertical Segment Desktop
Processor Number 805
Status End of Interactive Support
Launch Date Q1'05
Lithography 90 nm
Recommended Customer Price $93.00

Performance

# of Cores 2
Processor Base Frequency 2.66 GHz
Cache 2 MB L2
Bus Speed 533 MHz FSB
FSB Parity No
TDP 95 W
VID Voltage Range 1.200V-1.400V

Supplemental Information

Embedded Options Available No
Datasheet View now

Memory Specifications

Physical Address Extensions 32-bit
ECC Memory Supported ‡ No

Package Specifications

Sockets Supported PLGA775
TCASE 64.1°C
Package Size 37.5mm x 37.5mm
Processing Die Size 206 mm2
# of Processing Die Transistors 230 million
Low Halogen Options Available See MDDS

Advanced Technologies

Intel® Turbo Boost Technology ‡ No
Intel® Hyper-Threading Technology ‡ No
Intel® Virtualization Technology (VT-x) ‡ No
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ No
Intel® 64 ‡ Yes
Instruction Set 64-bit
Idle States Yes
Enhanced Intel SpeedStep® Technology No
Intel® Demand Based Switching No
Thermal Monitoring Technologies No

Intel® Data Protection Technology

Intel® AES New Instructions No

Intel® Platform Protection Technology

Trusted Execution Technology ‡ No
Execute Disable Bit ‡ Yes
