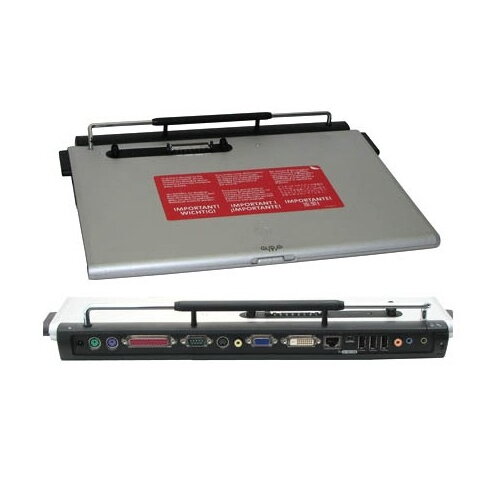

HP DC366B, PR1006, 339187-001, Compaq Advanced Port Replicator 1.2

General Spec
Compatibility
Compaq Evo n620c Notebook PC

HP Compaq nc4000 Notebook PC

HP Compaq nc4010 Notebook PC

HP Compaq nc6000 Notebook PC

HP Compaq nc8000 Notebook PC

HP Compaq nw8000 Mobile Workstation

HP Compaq nx5000 Notebook PC
Ports Spec
1 x audio - line-in - mini-phone stereo 3.5 mm

1 x audio - line-out - mini-phone stereo 3.5 mm

1 x audio - SPDIF output

1 x display / video - S-video output - 4 pin mini-DIN

1 x display / video - composite video output - RCA

1 x display / video - DVI-Digital - 24 pin digital DVI

1 x display / video - VGA - 15 pin HD D-Sub (HD-15)

1 x serial - RS-232 - 9 pin D-Sub (DB-9)

1 x parallel - IEEE 1284 (EPP/ECP) - 25 pin D-Sub (DB-25)

1 x keyboard - generic - 6 pin mini-DIN (PS/2 style)

1 x mouse - generic - 6 pin mini-DIN (PS/2 style)

3 x Hi-Speed USB - 4 pin USB Type A

1 x IEEE 1394 (FireWire) - 4 pin FireWire

1 x network - RJ-45

1 x docking / port replicator
Physical spec
Dimension
16.2" x 11.8" x 1.3"
Weight
4.4 lbs.
Features
Features
The Port Replicator incorporates NIC pass though so the network card of the notebook provides the networking capabilities. The system main battery can be charged when connected to the Port Replicator if the AC Adapter provided with the Port Replicator is plugged in. The Port Replicator has a security slot that incorporates two levels of security. One slot allows the Port Replicator to be secured to a stationary object. The second slot locks the Port Replicator and the notebook to a stationary object. This security feature works only in conjunction with an optional security cable lock accessory kit.
