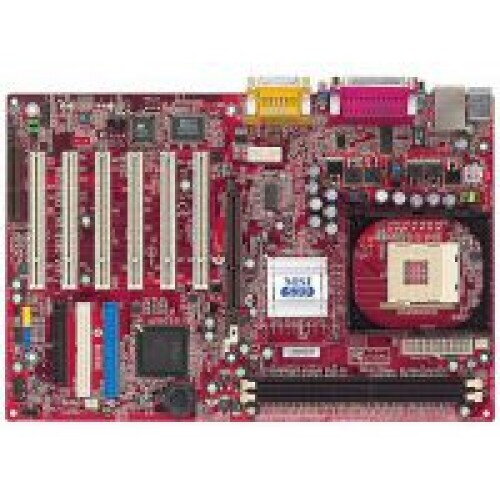

MSI 845GE Max

CPU
⢠Supports Socket 478 for Intel® Pentium 4/Celeron processor

⢠Supports 1.3 ~ 3.06GHz and up



Chipset
⢠Intel® 845GE Chipset

- AGP 4x slot (1.5V only)

- Integrated graphic controller

- Supports 100/133MHz FSB

- Supports 400/533MHz Intel NetBurst micro-architecture bus



⢠Intel® ICH4 Chipset

- AC'97 2.2 interface

- 6 USB 2.0/1.1 ports

- 2 channel Ultra ATA/100 Bus Master IDE controller

- SMBus 2.0 support

- Integrated LAN controller



FSB
⢠Support 100/133MHz FSB

⢠Support 400/533MHz Intel NetBurst micro-architecture bus.



Main Memory



⢠Supports two 184-pin DDR200/DDR266/DDR333 DIMMs

⢠Supports Max. memory size of 2GB

⢠No support ECC Function

Note: FSB533 CPU is required in order to choose DDR333 selection in the BIOS setup.



Slots



⢠One AGP (Accelerated Graphics Port) 4x slot (support 1.5v only)

⢠Six PCI 2.2 32-bit Master bus slots (support 3.3v/5v)

⢠One CNR (Communication Network Riser) slot



On-Board IDE



⢠An IDE controller integrated in ICH4

⢠Support PIO, Bus Master and Ultra ATA66/100 operation modes

⢠Can connect up to four IDE devices



Audio



⢠6 channels audio codec Realtek ALC650



Video
⢠Integrated Intel Extreme Graphics



Network



⢠ICH4 integrated LAN controller

- Intel 82562ET (Optional)


On-Board Peripherals
On-Board Peripherals include:

- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes

- 2 serial ports COM A amp; COM 2

- 1 VGA port

- 1 parallel port

- 1 RJ-45 LAN jack (Optional)

- 1 audio/game port

- 6 USB ports (Rear * 2/ Front * 4)



BIOS
⢠The mainboard BIOS provides "Plug amp; Play" BIOS which detects the peripheral devices and

expansion cards of the board automatically.

⢠The mainboard provides a Desktop Management Interface(DMI) function which records your

mainboard specifications.



Dimension
⢠30.5 cm(L) x 20.5 cm(W) ATX Form Factor
Mounting
⢠6 mounting holes.
