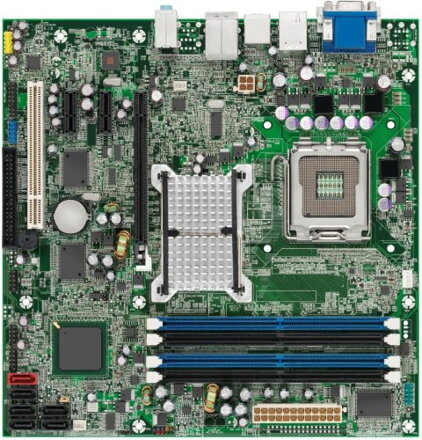

Intel DQ35JOE

Form factor
microATX (9.60 inches by 9.60 inches [243.84 millimeters by 243.84 millimeters])
Processor
Support for an Intel® Core™2 Quad processor in an LGA775 socket with a 1066 or 800 MHz system bus
Support for an Intel® Core™2 Duo processor in an LGA775 socket with an 1333, 1066 or 800 MHz system bus
Support for an Intel® Pentium® processor in an LGA775 socket with an 800 MHz system bus
Support for an Intel® Celeron® processor in an LGA775 socket with an 800 MHz system bus
Memory
Four 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets
Support for DDR2 800 MHz or DDR2 667 MHz DIMMs
Support for up to 8 GBΣ of system memory
Chipset
Intel® Q35 Express Chipset
Audio
Intel® High Definition Audio subsystem in the following configuration:
2+2-channel audio subsystem using the RealTek* ALC268 audio codec
Video
Intel® Graphics Media Accelerator 3100 onboard graphics subsystem
I/O control
Legacy I/O controller for serial ports
LAN Support
Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel® 82566DM Gigabit Ethernet Controller
Peripheral interfaces
Twelve USB 2.0 ports
Six Serial ATA 3.0 Gb/s ports, including 1 eSATA port with RAID support
Two IEEE 1394a ports (1 external port, 1 internal header)
One Parallel ATA IDE interface with UDMA 33, ATA-66/100/133 support
One serial port
Expansion capabilities
One PCI Conventional* bus add-in card connector
Two PCI Express* x1 bus add-in card connectors
One PCI Express x16 bus add-in card connector
Microsoft Windows Vista* Home Premium ready
With a PC built with Intel Core 2 Duo or Intel Core 2 Quad processors, and the Intel® Desktop Board, you can experience a more responsive and manageable environment of Microsoft Windows Vista including a new visual sophistication of the Microsoft Windows Aero* interface.
Form factor
microATX (9.60 inches by 9.60 inches [243.84 millimeters by 243.84 millimeters])
Processor
Support for an Intel® Core™2 Quad processor in an LGA775 socket with a 1066 or 800 MHz system bus
Support for an Intel® Core™2 Duo processor in an LGA775 socket with an 1333, 1066 or 800 MHz system bus
Support for an Intel® Pentium® processor in an LGA775 socket with an 800 MHz system bus
Support for an Intel® Celeron® processor in an LGA775 socket with an 800 MHz system bus
Memory
Four 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets
Support for DDR2 800 MHz or DDR2 667 MHz DIMMs
Support for up to 8 GBΣ of system memory
Chipset
Intel® Q35 Express Chipset
Audio
Intel® High Definition Audio subsystem in the following configuration:
2+2-channel audio subsystem using the RealTek* ALC268 audio codec
Video
Intel® Graphics Media Accelerator 3100 onboard graphics subsystem
I/O control
Legacy I/O controller for serial ports
LAN Support
Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel® 82566DM Gigabit Ethernet Controller
Peripheral interfaces
Twelve USB 2.0 ports
Six Serial ATA 3.0 Gb/s ports, including 1 eSATA port with RAID support
Two IEEE 1394a ports (1 external port, 1 internal header)
One Parallel ATA IDE interface with UDMA 33, ATA-66/100/133 support
One serial port
Expansion capabilities
One PCI Conventional* bus add-in card connector
Two PCI Express* x1 bus add-in card connectors
One PCI Express x16 bus add-in card connector
Microsoft Windows Vista* Home Premium ready
With a PC built with Intel Core 2 Duo or Intel Core 2 Quad processors, and the Intel® Desktop Board, you can experience a more responsive and manageable environment of Microsoft Windows Vista including a new visual sophistication of the Microsoft Windows Aero* interface.
