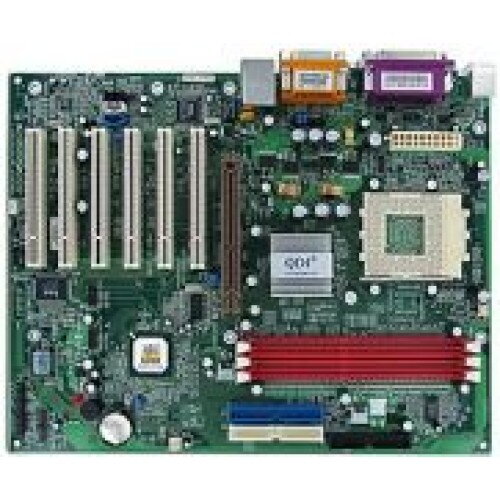

KuDoZ 7X/400A

Chipset


North bridge:VIA KT400A

South bridge:VIA 8235CD
Bus Type
6 PCI slots

1 AGP

1 CNR(optional)
CPU
Support Socket A AMD Athlon , AthlonXP and Duron Processors

AMD AthlonXP 1500+/1600+/1700+/1800+/1900+/2000+/2100+/2200+/2400+/2600+

AMD Athlon 650/700/750/800/850/900/950/1000/1000-266/1100/1133-266/1400/1400-266

AMD Duron 600/650/700/750/800/850/900/950/1000/1100/1200/1300
System Memory

Three 184 pin 2.5V DDR DIMM sockets, Support DDR 400/333/266

Supports up to 3G DDR module maximum
Power Management
ACPI V1.0 and APM compliant

Supports S0, S1, S3, S4, S5 ACPI power status

Support Suspend to RAM
USB
6 USB (2 for I/O panel and 4 for front panel with optional cable)

USB 2.0 specification compliant
Bus Speed
200/266/333 MHz FSB
BIOS
2 Mbit Flash ROM

Licensed advanced AWARD BIOS

Supports Plug and Play

Supports ACPI and OS directed power management
Storage system
Two PCI Master IDE ports support up to 4 IDE devices

Supports ATA 100/133

One floppy port support up to two 3.5¡± or 5.25¡± floppy drives

( 360K/720K/1.2M/1.44M/2.88M)

Supports LS-120 floppy disk drive and ZIP drive
I/O Feature
2 High Speed Serial Ports (16550 Fast UART Compatible)

1 Enhanced Parallel Port Support EPP/ECP/SPP

1 PS/2 keyboard port

1 PS/2 mouse port

IrDA port support up to 115.2Kb/s transfer rate

All I/O ports can be enabled/disabled by BIOS setup
Graphics
AGP 8X interface

Universal AGP Slot

Transfer rate up to 2.1 GB/s (Can not support AGP 2X Card)
Onboard Audio
KuDoz 7X/400A: No Audio

KuDoz 7X/400A-6A:Support AC'97 5.1 channel audio
Advanced Feature
Wake up on LAN

Wake up on Modem

Trend ChipAwayVirus on Guard

Norton AntiVirus™ 2003
QDI Innovative Technology
RecoveryEasy II, LogoEasy II, BootEasy, BIOS-ProtectEasy, CPU Triple protection
System Health Monitoring
CPU temperature, System temperature, CPU fan speed

Chassis fan speed, 5 System Voltages
Board Size
ATX: 305x238MM
