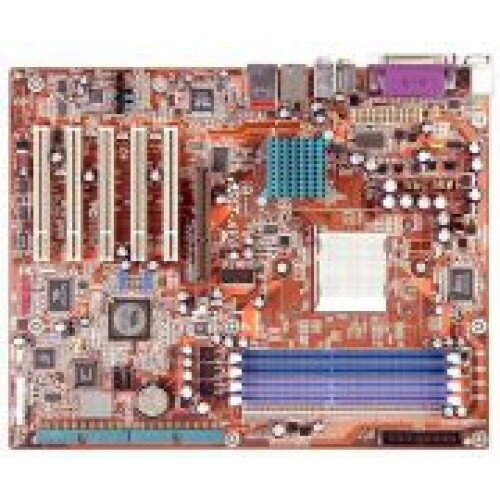

ABIT AV8

Model
Brand
ABIT
Model
AV8
Supported CPU
CPU Socket Type
939
CPU Type
Athlon 64 FX / Athlon 64
FSB
1000MHz Hyper Transport (2000 MT/s)
Chipsets
North Bridge
VIA K8T800 Pro
South Bridge
VIA VT8237
Memory
Number of Memory Slots
4×184pin
Memory Standard
DDR 400
Maximum Memory Supported
8GB
Channel Supported
Dual Channel
Expansion Slots
AGP Slots
1 x AGP 4X / 8X
PCI Slots
5
Storage Devices
PATA
2 x ATA100 4 Dev. Max
SATA 1.5 Gb/s
2
SATA RAID
0/1
Onboard Video
Onboard Video Chipset
None
Onboard Audio
Audio Chipset
AC97 Codec
Audio Channels
6 Channels
Onboard LAN
Max LAN Speed
10/100/1000Mbps
Rear Panel Ports
PS/2
2
COM
1
LPT
1
USB 1.1/2.0
4 x USB 2.0
IEEE 1394
1 x IEEE 1394a
S/PDIF Out
1 x Optical
S/PDIF In
1 x Optical
Audio Ports
5 Ports
Internal I/O Connectors
Onboard USB
4 x USB 2.0
Onboard 1394
2 x 1394a
Physical Spec
Form Factor
ATX
Dimensions
12.0" x 9.6"
Power Pin
20 Pin
