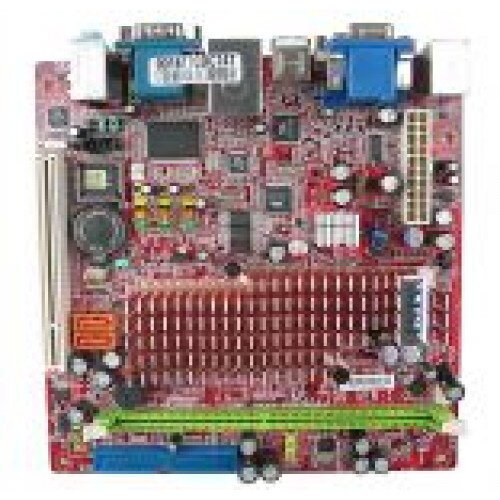

MSI CN700T MS-7199 VER:1.0

Processor
1 GHz VIA C7
Chipset
VIA CN700 northbridge

VIA VT8237R southbridge
System Memory
1 DDR2 400/533 SDRAM sockets

Up to 1GB memory size
VGA
Integrated VIA UniChrome Pro AGP graphics with MPEG-2 accelerator
Supported Resolution
1920 x 1440 maximum (CRT)
Expansion Slots
1 PCI
Onboard IDE
1 ATA 133 (40-pin)
Onboard Serial ATA
2 SATA connectors
Onboard USB
8 USB 2.0
Onboard LAN
Realtek RTL8110SC GbE10/100/1000
Onboard Audio
VIA VT1618 5.1 channel AC'97
Onboard TV Out
S-Video
Back Panel I/O
1 PS2 mouse port

1 PS2 keyboard port

1 VGA port

1 DVI-D port

1 S-Video port

2 RS-232 COM ports

1 LAN port

2 USB 2.0 ports

3 Audio jacks: line-out, line-in, mic-in
Onboard I/O Connectors
2 SATA connectors

3 USB 2.0 connectors for 6 USB ports

1 CD-in connector

1 Front audio connector

2 Fan connectors

ATX power connector
BIOS
Award BIOS 4Mb Flash memory
System Monitoring amp; Management
Watchdog timer, CPU voltage monitoring, Keyboard power on, Timer power on, System power management, AC power failure recovery
Operating Temperature
0 ~ 60°C
Operating Humidity
10% ~ 80% (relative humidity; non-condensing)
Form Factor
Mini-ITX (17 cm x 17 cm)
