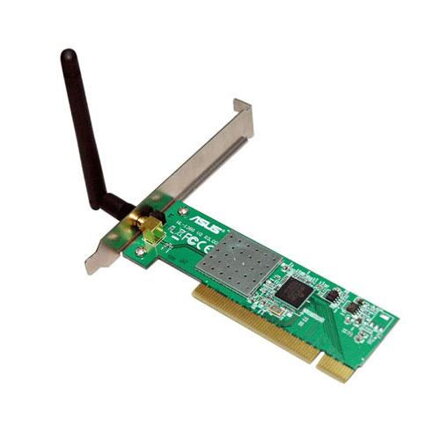

ASUS WL-138g V2

Host interface
PCI BUS Management Interface
Network Standard
IEEE 802.11b/g
Data Rate
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps

802.11b: 1, 2, 5.5, 11Mbps
Modulation
OFDM, CCK (11Mbps, 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps)
Technology
Direct Sequence Spread Spectrum
Network Architecture Types
Infrastructure and ad-hoc
Operating Frequency
2.412-2.462 GHz (N. America); 2.412-2.484 GHz (Japan); 2.412-2.472 GHz (Europe ETSI)
Operation Channel
11 for N. America, 14 Japan, 13 Europe (ETSI)
RF Output Power
18dBm+/-2.0 dBm
Antenna
Reverse connector (RP-SMA) with a detachable antenna
Range
Indoor 130 ft (40 m), outdoor (LOS, Light-Of-Sight) 1000 ft (310 m) at 802.11b operation

Indoor 80 ft (30 m), outdoor (LOS, Light-Of-Sight) 200 ft (60 m) at 802.11g operation

The range may vary by different environment
Receiver Sensitity
PERlt; 10% @ length=1024 octets(at nominal temperature range)

54 Mbps: -69 ~ -71 dBm

PERlt; 8% @ length=1024 octets(at nominal temperature range)

1 Mbps: -94 ~ -95 dBm
DC Power Adapter
TX power consumption: 350~400 mA

RX power consumption 290~350 mA
WEP
64/128-bit WEP

WPA2 (including 802.1x, TKIP, AES, â¦)
Utilities
Mobile control center: Integrate all tools and indicate real time status information on system tray



Wireless setting: Diagnose and configure your wireless network settings with on-line trouble shooting feature.



Mobile manager: Support automatic roaming and network reconfiguration between different locations



Site survey: Explore your wireless networking topology through a handy way



One Touch Setup Wizard: High-speed wireless network is just a few clicks away
Windows XP Compatibility
Native support for all built-in WLAN functions, like Zeroconfig, Media Sense and 802.1x
Support OS
Windows 98, ME, 2000, XP and Linux
LED Indicator
Link
Emission
ETS 300 328 and ETS 300 826; CE Mark; FCC Part 15C, Section 15.247
Dimensions
40 mm x 122mm x 4.6mm (not including the RF connector amp; bracket)
