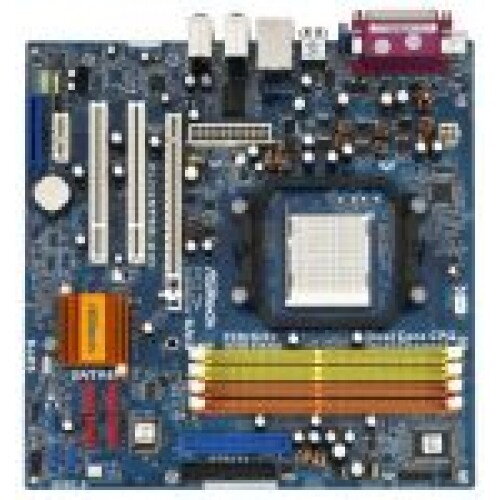

ASRock ALiveNF6G-DVI socket AM2

CPU
- Socket AM2 for AMD Athlon™ 64FX / 64X2 / 64 and Sempron processors

- AMD LIVE!™ Ready

- Supports AMD's Cool 'n' Quiet Technology

- FSB 1000 MHz (2.0 GT/s)

- Supports Untied Overclocking Technology

- Supports Hyper-Transport Technology
Chipset
- NVIDIA® GeForce 6100 / nForce 430 or GeForce 6150SE / nForce 430
Memory
- Dual Channel DDR2 memory technology

- 4 x DDR2 DIMM slots

- Supports DDRII800/667/533 non-ECC, un-buffered memory

- Max. capacity of system memory: 8GB*

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® Vista™. For Windows® XP 64-bit and Windows® Vista™ 64-bit with 64-bit CPU, there is no such limitation.
BIOS
- 4Mb AMI BIOS

- AMI Legal BIOS

- Supports "Plug and Play"

- ACPI 1.1 Compliance Wake Up Events

- Supports Jumperfree

- SMBIOS 2.3.1 Support
Audio, Video and Networking
Graphics
- Integrated NVIDIA® GeForce6-class graphics

- DX9.0 VGA, Pixel Shader 3.0

- Max. shared memory 256MB

- Dual VGA Output: Support D-Sub and DVI-D ports with DVI Graphics-SI Card by independent display controllers
Audio
- 7.1 CH Windows® Vista™ Premium Level HD Audio (ALC888 Audio Codec)
LAN
- Gigabit LAN 10/100/1000 Mb/s

- Giga PHY Realtek RTL8211B

- Supports Wake-On-LAN
Expansion / Connectivity
Slots
- 2 x PCI slots

- 1 x PCI Express x16 slot

- 1 x PCI Express x1 slot

- 1 x HDMR slot
Connector
- 4 x SATAII 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5, JBOD), NCQ, and "Hot Plug" functions

- 1 x ATA133 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 x IR header

- 1 x Game header

- 1 x COM port header

- 1 x HDMI_SPDIF header

- CPU/Chassis FAN connector

- 20 pin ATX power connector

- 4 pin 12V power connector

- CD in header

- Front panel audio connector

- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
Rear Panel I/O
HD 8CH I/O

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x VGA Port

- 1 x Parallel Port (ECP/EPP Support)

- 4 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 Port

- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Hybrid Booster
- CPU Frequency Stepless Control

- ASRock U-COP

- Boot Failure Guard (B.F.G.)

- ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5%
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories
- Quick Installation Guide, Support CD, I/O Shield

- Floppy/ATA 133 Cables

- 1 x SATA Data Cable (optional)

- 1 x SATA 1 to 1 Power Cable (optional)

- 1 x COM Port Bracket

- 1 x HDMR card (optional)

- 1 x HDMI_SPDIF Cable (optional)

- 1 x DVI Graphics-SI Card
Hardware Monitor
- CPU Internal Temperature Sensing

- CPU Ambient Temperature Sensing

- Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Form Factor
- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
OS
- Microsoft® Windows® 2000 / XP / XP Media Center / XP 64-bit / Vista™ / Vista™ 64-bit compliant
Certifications
- FCC, CE, WHQL
