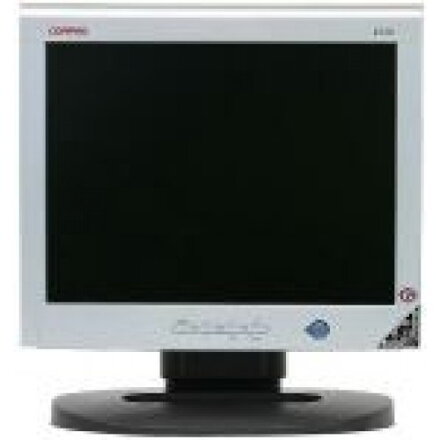

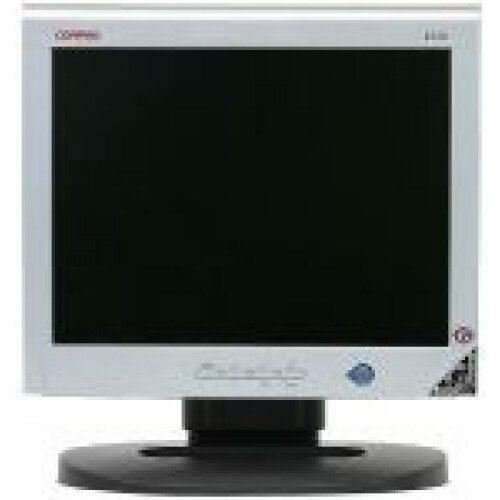

Compaq 1520 15" LCD monitor

Panel Type TFT large viewing angle

Liquid Crystal Display (diagonal) 15 in (38.1 cm)

Viewable (diagonal) 15 in (38.1 cm)

Screen Opening

(W x H) 12 x 9 in (31 x 23 cm)

Viewing Angle (max) 120° (horizontal) 100° (vertical) (350:1 Contrast Ratio)

Pixel Pitch 0.297 mm

Signal Input 15 pin mini D-sub VGA; digital DVI-D; dual input (VGA and DVI)

Contrast Ratio (typical) 350:1

Response Rate 35 ms (typical)

Brightness (typical) 250 cd/m2

Color Depth Support 16.7 million

Horizontal Frequency (kHz) 31 to 60 kHz

Vertical Frequency (Hz) 56 to 75 Hz

Graphics Controller ST or Genesis

Factory Present Modes 9

Graphic Preset Modes 1024 x 768 @60Hz, 75 Hz

NOTE: All modes are non-interlaced unless specified otherwise. 800 x 600 @ 60Hz, 75 Hz

640 x 480 @60 Hz, 75 Hz

Text Mode 720 x 400 @ 70 Hz

Mac Compatible Modes*

NOTE: * = Adapter required. 832 x 624 @ 75 Hz

Other Modes 640 x 350 @ 70 Hz

User-Programmable Modes 9

Anti-Glare/Anti-Static Yes/Yes

Plug and Play Yes

Icon Based On-Screen Display Controls Yes

User Controls Brightness, Contrast Yes

Positioning Yes

Color temperature Yes (6500k, 9300k, Custom)

Individual color control Yes

Serial Number Display Yes

Full Screen 640 x 480, 800 x 600 Resolutions Yes

Clock Yes

Clock Phase Yes

Recall Yes

Audio Recall Yes

Factory Reset Yes

Agency Approvals/

Certifications ISO 9241-3,7,8 VDT Guidelines Approval Yes

ISO 13406-2 Compliant Yes (Pixel Defect Guidelines)

MPR-II Compliant Yes

CISPR Requirements Yes

VCCI Approvals Yes

MIC (New Zealand) Requirements Yes

Canadian Requirements/CSA Yes

Australian ACA Approval Yes

German Ergonomic Yes (TUV and GS Mark)

Taiwan BSMI Approval Yes

China CCIB/CCEE Approval Yes

S. Korean MIC Approval Yes

Mexican NOM Approval Yes

Nordic Approvals Yes (Nemko, Fimko, Demko, Semko)

Eastern European Approvals Yes

CE Marking Yes

TUV-Ergo Yes

FCC Approval Yes

Energy Star Compliant Yes

TCO 99 Yes (Emissions, Ergonomics, Environment)

PC2001 Compliant Yes

PC99 Certified Yes

UL Listed Yes

Windows® Certification Microsoft® Windows 98, Microsoft Windows 2000, and Microsoft Windows XP

Language Selection English Yes

Spanish Yes

French Yes

German Yes

Italian Yes

Pixel Clock Speed 80 MHz

Input Impedance 75 ohms ± 2%

Power Supply ALS Auto-Ranging, 90 to 264 VAC; External Brick, 60 Hz

Power Rating TFT1520 TFT1520M

Maximum Mode lt; 20W lt; 31W

Power Saving Mode lt; 2W lt; 5W

Off Mode lt; 2W lt; 3W

Synch Input Separate sync (HSYNC/VSYNC); Composite sync

PC Comm Station

(included with TFT1520M models) Audio Built in stereo speakers

Volume Control Yes

Microphone and Headphone Jack Yes/Yes

USB Yes

Telephone Headset Yes

Kensington Lock-ready Yes

Accessories Included VGA cable, Universal Power adaptor, AC Power Cord, Comm Station Multimedia Kit with (select models)

Protective Panel Optional

VESA Mounting 75 mm x 75 mm screw-mounting option; pedestal is attached

Detachable Base Yes

Tilt Yes (-5° to +25° )

Swivel No

Touchscreen Option No

Dimensions

(H x W x D) With stand 15.6 x 13.9 x 8.2 in (39.5 x 35.25 x 20.8 cm)

Without stand 12 x 13.9 x 1.9 in (30.45 x 35.25 x 4.8 cm)

Approximate Weight With height-adjustable stand 10.3 lb (4.7 kg)

Without stand 6.8 lb (3.1 kg)

Temperature Operating 41° to 104° F (10° to 35° C)

Non-operating -4° to 140° F (-10° to 60° C)

Humidity Operating 20% to 85%

Non-operating 10% to 85%
