Features/Specifications:

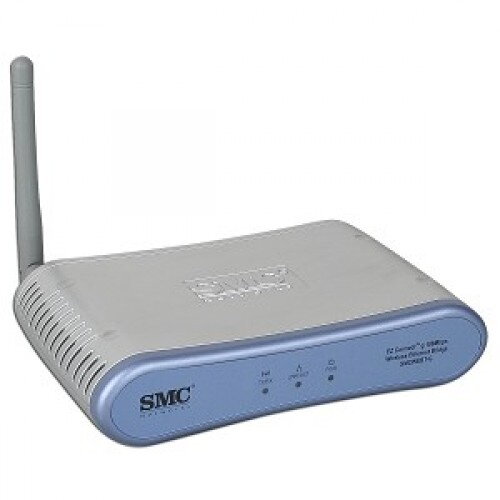

SMC Networks SMCWEBT-G EZ Connect 802.11g Wireless Access Point/Bridge Bridge
General Features:
All-in-one unit bridges Ethernet and gaming peripherals
Connect any Ethernet device to wireless networks, i.e. laptops, printers, etc.
Share a single broadband connection with everyone else on the network
802.11g technology (Backwards compatible with 802.11b)
108 Mbps data transfer rate
Operates at 2.4 GHz frequency range
64-bit and 128-bit WEP encryption
Uses Direct Sequence Spread Spectrum (DSSS) and Orthogonal
Frequency Division Multiplexing (OFDM) technology
Ad-hoc or Infrastructure mode
Ability to define multiple Profile settings
One external antenna design
EZ Installation Wizard ensures simple and easy setup
Compatibility:
IEEE 802.3, 802.3u
IEEE 802.11b
IEEE 802.11g
Platform independent
Installation wizard for Windows 98SE/Me/2000/XP
Specifications:
IEEE 802.3u
IEEE 802.11b
IEEE 802.11g
LAN Port:
One 10/100 Mbps Ethernet LAN port
Reset Button:
Soft Reset and Reset to factory defaults. The reset button acts as:
Reboot: push for 2 seconds
Back to factory default settings: push for 8 seconds
Antenna:
One internal antenna and one external removable antenna
Antenna Gain:
1.5 dBi
Power Specifications:
Input: 5V, 1.0A
Output: 15 +/- 1 dBm
Receive Sensitivity:
802.11b: -90 dBm
802.11g: -88 dBm @ 6 Mbps, -70 dBm @ 54 Mbps
Supported Modes:
AP
Repeater
Ethernet Client
AP Features:
Extended range
MAC Cloning
Security
WEP 64/128 bit encryption
WPA -802.1x
WPA2 (TKIP/AES)
MAC Address Filtering MAC Address Filtering
Supports Hidden SSID
Repeater Features:
WDS
Security
WEP64/128/152 bit encryption over WDS
WPA-PSK over WDS
Ethernet Client Features:
Site survey
Security
WEP64/128/152 bit encryption
WPA-PSK
Management:
Web based configuration
Firmware upgradeable
SNMP v2c (or v3) â 802.11, 802.1x, User Session MIBs
Telnet
TFTP
Non-Operational Conditions:
Ambient temperature: -40°C to +70°C
Relative humidity: 5-95%.
Operational Conditions:
Supply voltage of external power supply: input 110 VAC (optional 220V), 50/60 Hz; output 6VDC, 1A
Ambient temperature: 0°C to +40°C
Relative humidity: 95% max
Unit Dimensions:
1.25 x 5.75 x 3.75-inches (H x W x D, approximate)
Regulatory Approvals:
FCC
CE
CSA
C-Tick
WEEE
TUV/GS
SMC Networks SMCWEBT-G EZ Connect 802.11g Wireless Access Point/Bridge Bridge
General Features:
All-in-one unit bridges Ethernet and gaming peripherals
Connect any Ethernet device to wireless networks, i.e. laptops, printers, etc.
Share a single broadband connection with everyone else on the network
802.11g technology (Backwards compatible with 802.11b)
108 Mbps data transfer rate
Operates at 2.4 GHz frequency range
64-bit and 128-bit WEP encryption
Uses Direct Sequence Spread Spectrum (DSSS) and Orthogonal
Frequency Division Multiplexing (OFDM) technology
Ad-hoc or Infrastructure mode
Ability to define multiple Profile settings
One external antenna design
EZ Installation Wizard ensures simple and easy setup
Compatibility:
IEEE 802.3, 802.3u
IEEE 802.11b
IEEE 802.11g
Platform independent
Installation wizard for Windows 98SE/Me/2000/XP
Specifications:
IEEE 802.3u
IEEE 802.11b
IEEE 802.11g
LAN Port:
One 10/100 Mbps Ethernet LAN port
Reset Button:
Soft Reset and Reset to factory defaults. The reset button acts as:
Reboot: push for 2 seconds
Back to factory default settings: push for 8 seconds
Antenna:
One internal antenna and one external removable antenna
Antenna Gain:
1.5 dBi
Power Specifications:
Input: 5V, 1.0A
Output: 15 +/- 1 dBm
Receive Sensitivity:
802.11b: -90 dBm
802.11g: -88 dBm @ 6 Mbps, -70 dBm @ 54 Mbps
Supported Modes:
AP
Repeater
Ethernet Client
AP Features:
Extended range
MAC Cloning
Security
WEP 64/128 bit encryption
WPA -802.1x
WPA2 (TKIP/AES)
MAC Address Filtering MAC Address Filtering
Supports Hidden SSID
Repeater Features:
WDS
Security
WEP64/128/152 bit encryption over WDS
WPA-PSK over WDS
Ethernet Client Features:
Site survey
Security
WEP64/128/152 bit encryption
WPA-PSK
Management:
Web based configuration
Firmware upgradeable
SNMP v2c (or v3) â 802.11, 802.1x, User Session MIBs
Telnet
TFTP
Non-Operational Conditions:
Ambient temperature: -40°C to +70°C
Relative humidity: 5-95%.
Operational Conditions:
Supply voltage of external power supply: input 110 VAC (optional 220V), 50/60 Hz; output 6VDC, 1A
Ambient temperature: 0°C to +40°C
Relative humidity: 95% max
Unit Dimensions:
1.25 x 5.75 x 3.75-inches (H x W x D, approximate)
Regulatory Approvals:
FCC
CE
CSA
C-Tick
WEEE
TUV/GS
