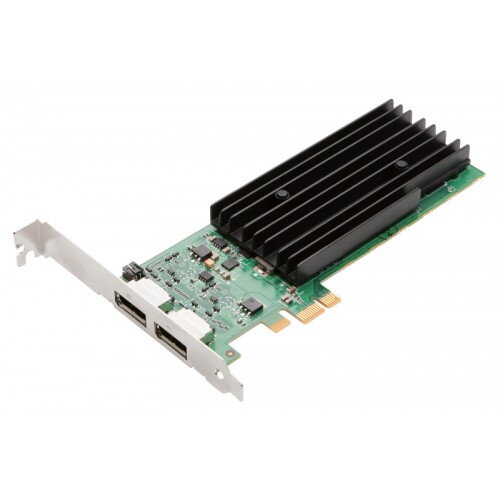

PNY Nvidia Quadro NVS 295, 256MB PCIE x1, 2x DisplayPort VCQ295NVS-X1

Delivering a reliable hardware and software platform, the NVIDIA Quadro NVS 295 by PNY is designed to meet the needs of today’s most demanding business user. Featuring NVIDIA® nView® display management software and support for up to two 30’’ displays at 2560x1600 resolutions, business professionals can maximize productivity through increased desktop real estate and advanced application management tools. Tested on industry-leading business applications, the NVIDIA Quadro NVS 295 by PNY provides a stable business environment.



Form Factor: Low Profile - SFF

Memory Size : 256MB GDDR3

Memory Interface : 64-bit

Memory Bandwidth : 11.2GB/s

Max Power Consumption : 23W

Graphics Bus : PCI Express x1

Display Connectors : DisplayPort (2)

Single Link DVI-D : Yes (2 through industry standard DisplayPort to DVI-D adapter cables - P/N:VCQ295NVSX1DVI-PB)

Auxiliary Power Connectors : No

Number of Slots : 1

Thermal Solution Passive : Passive heatsink
KEY FEATURES AND BENEFITS:



nView Display Management Software

NVIDIA® nView® Display Management Software delivers maximum flexibility for single or multi-display options, providing unprecedented end-user control of the desktop experience for increased productivity.



NVIDIA Unified GPU Architecture

Industry’s first unified architecture designed to dynamically allocate GPU resources to deliver optimized performance.



Dual DisplayPort

Featuring the small and user friendly DisplayPort connectors, Quadro NVS 295 is capable of supporting two high-resolution displays at 2560 x 1600 resolution.



Fanless Design

Built with a passive heatsink for a quieter desktop environment.



NVIDIA PureVideo® Technology

NVIDIA PureVideo technology is the combination of high-definition video processors and software that delivers unprecedented picture clarity, smooth video, accurate color, and precise image scaling for SD and HD video content. Features include high-quality scaling, spatial temporal de-interlacing, inverse telecine, and high quality HF video playback from DVD.



Energy Star Enabled Design

Enables Energy Star compliance with low maximum and low idle power levels.



Essential for Windows Vista

Offering an enriched 3D user interface, increased application performance, and the highest image quality, NVIDIA® Quadro® graphics boards and NVIDIA OpenGL ICD drivers are optimized for 32- and 64-bit



Product Specifications

- Bus Interface: PCI Express x1

- Memory Size: 256MB of local GDDR3 frame buffer

- Memory Interface: 64-bit

- Form Factor: SFF

- Display Connectors: DisplayPort (2)

- Max. Displays per Board: 2

- Max Digital Display Resolution: 2560 x 1600

- Power and Cooling: 23W – Passive

- nView Enabled: Yes

- DVI Links: Requires industry standard DisplayPort to DVI-D adapter, up to 4 supported (P/N:VCQ295NVSX1DVI-PB)

- Analog Displays: Not supported



Package Contains

- NVIDIA Quadro NVS 295 by PNY graphics board for PCI Express (x1 lane slot)

- Drivers for Windows XP and Vista

- Detailed PNY Installation Guide

- NVIDIA nView Desktop Manager Guide

- DisplayPort to DVI-D Adapters (Optional P/N:VCQ295NVSX1DVI-PB)



Minimum System Requirements

- PC compatible with Intel Pentium® 4/Xeon® or AMD Opteron® class processor or higher

- Open PCI Express x1, x4 or x8 lane slot

- Microsoft Windows Vista, XP, 2000 or Linux

- 256MB system memory

- 50MB of available disk space for full installation

- CD-ROM or DVD-ROM drive

- DisplayPort compatible display(s) (DVI display requires optional DisplayPort to DVI adapter cable)

- DVI compatible display(s) – require industry standard DisplayPort to DVI adapter cable(s)

- VGA compatible display(s) – not supported

- 350W power supply



Certified Corporate and Financial Applications

- HummingBird® Exceeds

- Lotus Notes®

- McAfee® Virus Scan

- Microsoft® Office

- LpcAnywhere®

- Reuters®

- Tradestation®

And many more…
