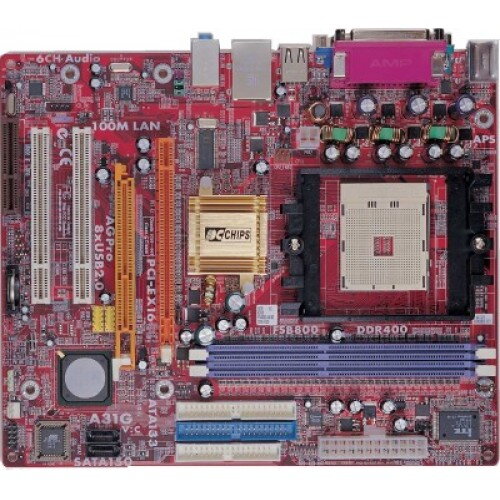

PCCHIPS A31G V:1.0 AMD K8 Socket 754 SiS 761 GX Micro ATX

CPU

Socket 754 for AMD Athlon64(K8)/Sempron processor

FSB

800 MHz

Chipset

SiS 761GX/965L

VGA

Embedded Mirage Graphics with 128MB share memory

Memory

2 x 184-pin DIMM sockets support two 2.5V DDR SDRAMs (DDR400/333/266)

Maximum: 2GB

Expansion Slots

1 x PCI Express x 16 slot

1 x AGPro Slot

2 x PCI slots

1 x CNR slot

LAN

Realtek RTL8201CL 10/100Mbps Fast Ethernet PHY

Audio

AD 1888 6-channel audio Codec

Compliant with AC'97 2.3 specification

IDE

2 x UltraDMA 133/100/66

Back Panel I/O Ports

1 x PS/2 keyboard

1 x PS/2 mouse

1 x Parallel Port

1 x Serial Port

1 x VGA port

4 x USB 2.0 Ports

1 x RJ 45 Port

1 x Audio I/O (Line-in, Line-out and Mic-in)

Internal I/O Connectors amp; Headers

24-pin ATX Power Supply connector

4-pin ATX 12V power supply connector

2 x USB 2.0 header support additional 4 USB2.0 ports

2 x Serial ATA connectors

1 x Front panel switch/LED header

1 x Front panel audio header

CPU / SYS FAN headers

1 x IrDA for SIR header

1 x Speaker header

1 x CD in header

1 x Floppy connector-support 360K~2.88MB FDDs

System BIOS

AMI 4Mb Flash ROM

Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI

Full support for ACPI revision 1.0 specification

Form Factor

Micro-ATX Form Factor, 244*200mm
CPU
• Supports 64-bit AMD® Athlon™ 64, Sempron™ and Turion™ 64 processor (Socket 754)

• Athlon 64: 2800+ ~ 3700+, Sempron 3100+

• Please refer to CPU Support for compatible CPU; the above description is for reference only.
Chipset
• VIA® K8M800 Chipset

- HyperTransport™ connection to AMD® Athlon™ 64 processor

- 8 or 16 bit control/address/data transfer both directions

- 800/600/400/200MHz "Double Data Rate" operation both direction

- AGP v3.0 compliant with 8x transfer mode

- Graphic integrated
• VIA® VT8237R Chipset

- Integrated Faster Ethernet LPC

- Integrated Hardware Sound Blaster/Direct Sound AC97 audio

- Ultra DMA 66/100/133 master mode PCI EIDE controller

- ACPI

- Supports 2 Serial ATA ports

- Supports 8 USB2.0 ports


Main Memory
• Supports DDR266/333/400 DDR DRAM for two 184-pin DDR DIMMs.

• Supports a maximum memory of 2GB.


Slots
• One AGP 8x/4x slot

- AGP 3.0 specification compliant

• Three 32-bit Master PCI bus slots (support 3.3v/5v PCI bus interface).


On-Board IDE/SATA
• An IDE controller on the VIA® VT8237R chipset provides IDE HDD/CDROM with PIO, Bus

Master and Ultra DMA 66/100/133 operation modes

- Can connect up to four Ultra ATA drives.
• Serial ATA/150 controller integrated by VT8237

- Up ot 1.5Gb/s transfer rate

- Can connect up to 2 serial ATA devices

- Supports RAID 0 or RAID 1
MSI Reminds You...

• The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk.


Audio
• 6 channels software audio codec VIA VT1617A

- Compliance with AC97 v2.3 Spec.

- Meet PC2001 audio performance requirement.


LAN
• VIA® VT6103L 10/100Mb/s PHY

- Compliant with PCI v2.2 and PC99 standard.

- Supports ACPI Power Management.


Internal I/O Connectors
- ATX 20-Pin power connector

- 4-pin ATX 12V power connector

- CPU / System FAN connectors

- CD-in connector

- Clear CMOS jumper

- Serial port connector (COM2)

- S/PDIF Out connector

- Front panel audio connector

- 2 x USB 2.0 connector support additional 4 ports

- Front panel connector

- 1 x Floppy disk drive connector

- 2 x serial ATA connectors

- 2 x ATA133 HD connectors
MSI Reminds You...

• The floppy disk cable will be optional.


Back Panel I/O Ports
- 1 x Parallel

- 1 x Serial port (COM 1)

- 1 x VGA

- 1 x PS/2 Keyboard

- 1 x PS/2 Mouse

- 1 x Audio I/O (Line-in/Line-out/MIC)

- 4 x USB 2.0

- 1 x RJ45 LAN Jack


BIOS
• 4Mb Award BIOS with PnP, ACPI, SMBIOS 2.3, Green and Boot Block.

• Provides DMI2.0, WfM2.0, chassis intrusion, and SMBus forsystem management.


Dimension
• 24.5cm(L) x 19.5cm(W) Micro-ATX Form Factor
Mounting
• 6 mounting holes.
