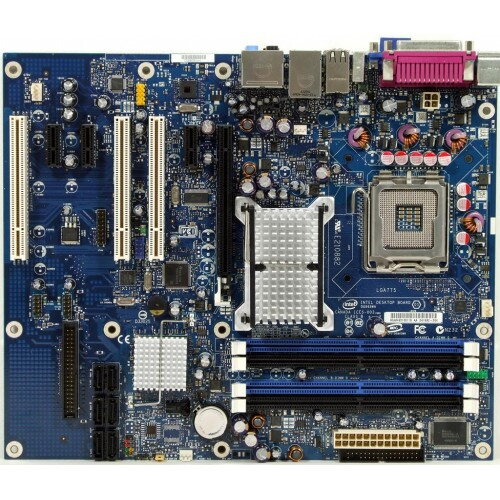

Intel Desktop board DG965WH

Supported CPU
CPU Socket Type
LGA 775
CPU Type
Core 2 Duo / Pentium D / Celeron D
FSB
1066/800MHz
Chipsets
North Bridge
Intel G965 Express
South Bridge
Intel ICH8R
Memory
Number of Memory Slots
4Ã240pin
Memory Standard
DDR2 800
Maximum Memory Supported
8GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express x16
1
PCI Express x1
3
PCI Slots
3
Storage Devices
PATA
1 x ATA100 2 Dev. Max
SATA 3Gb/s
6
SATA RAID
0/1/0+1/5 Matrix RAID
Onboard Video
Onboard Video Chipset
Intel GMA X3000
Onboard Audio
Audio Chipset
SigmaTel STAC9271D
Audio Channels
8 Channels
Onboard LAN
LAN Chipset
Intel 82566DC
Max LAN Speed
10/100/1000Mbps
Rear Panel Ports
PS/2
2
LPT
1
Video Ports
D-Sub
USB 1.1/2.0
6 x USB 2.0
IEEE 1394
1 x IEEE 1394a
S/PDIF Out
1 x Optical
Audio Ports
5 Ports
Internal I/O Connectors
Onboard USB
4 x USB 2.0
Onboard 1394
1 x 1394a
Physical Spec
Form Factor
ATX
Dimensions
11.6" x 9.6"
Windows Vista
Certified for Windows Vista
Power Pin
24 Pin
Features
Features
Notice: Only DDR2-800 memory supporting JEDEC approved 1.8V operation with timings of 5-5-5 or 6-6-6 is supported on Intel Desktop Boards based on Intel 965 Express Chipsets.
