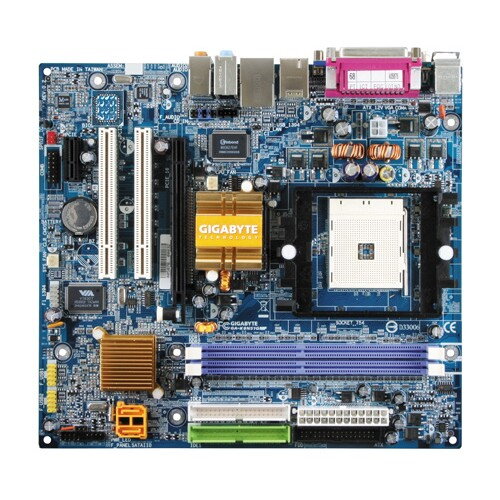

GIGABYTE GA-K8N51GMF socket 754 NVIDIA GeForce 6100 Micro ATX AMD Motherboard

CPU

Socket 754 supports AMD Athlon™64 / Sempron Processor

Chipset

NVIDIA® GeForce™ 6100 and NVIDIA nForce™ 410

Super I/O: Winbond W83627 chip

Integrated peripherals

VIA VT 6307 IEEE1394 controller

Realtek 8201 10/100 LAN PHY chip

Realtek ALC850 Audio Codec

Memory

Type: DDR400/ 333/ 266 -184pin

Max capacity: Up to 2GB by 2 DIMM slots

Internal I/O Connectors

2 X Serial ATA 3Gb/s connectors

2 x UDMA ATA 133/100/66 Bus Master IDE connectors

1 x FDD connector

2 x USB 2.0/1.1 connectors (supports 4 ports)

1 x IEEE 1394 connector (supports 1 port)

2 x cooling fan pin headers

S/P DIF in/out connector

CD in connector

1 x Com port connector

Expansion Slots

1 x PCI-Express X16 slot

1 x PCI-Express X1 slot

2 x PCI slots (PCI 2.3 compliant)

Back Panel Connectors

PS/2 Keyboard/ Mouse

1 x VGA port

1 x LPT port

4 x USB 2.0/1.1 ports

1 x RJ45 port

1 x IEEE1394 port

Audio (4 x Line-out/ 1 x Line-in/ 1 x MIC) connectors

Power

ATX power connector and ATX 12V connector

Form Factor

Micro-ATX form factor

24.4 x 22.0 cm

H/W Monitoring

System health status auto-detect and report by BIOS

Hardware detecting and reporting for case open, CPU voltage, and fan speed

BIOS

4M bit flash ROM, Award BIOS

Other Features

NVIDIA Firewall

NVIDIA RAID 0,1

Norton Internet Security

Download Center

Xpress Installation

Xpress Recovery
