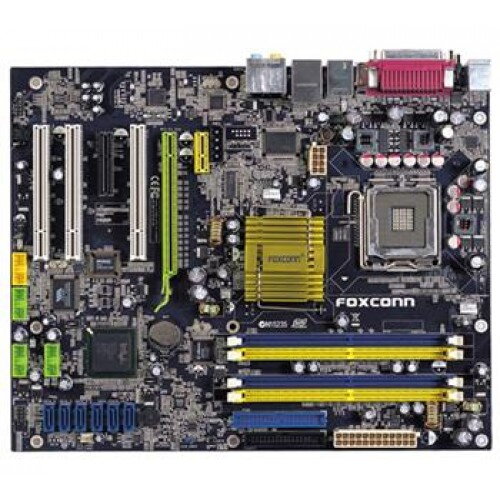

Foxconn P9657AA-8EKRS2H

ProcessorIntel® Core™2 Quad, Core™2 Extreme, Core™2 Duo, Pentium® EE, Pentium® D, Pentium® 4, Celeron® D processors , Socket T (LGA775)ChipsetIntel P965+ICH8RFront Side Bus1066 / 800 / 533 MHzMemoryDual Channel DDR2 800 / 667 x 4 DIMMs, Max 8GBVGA on DieN/AExpansion Slots1 x PCIe x16, 1 x PCIe x4, 1 x PCIe x1, 3 x PCIIDEATA 133 x 1 (To advance IDE transfer speed, you may install JMicron IDE-SATA RAID Drive. You can download the drive by clicking the "drive" icon at the left side.)Serial ATA(SATA)/RAID6 x SATAII + 1 x eSATAII with RAID 0, 1, 5, 0+1, JBODAudio7.1 channel Audio with Realtek ALC883 (HDA)LANGbE LAN with Marvell 88E8056 (PCIe)IEEE13942 x 1394a with VT6308PBack Panel I/O Ports1 set 7.1 channel Audio jack (5 jacks) 1 x PS/2 keyboard 1 x PS/2 mouse 1 x parallel port 4 x USB 2.0 1 x RJ45 1 x Serial port 1 x 1394a 1 x S/PDIF Fibre out 1 x E-SATAInternal I/O Connectors3 x USB 2.0 headers support 6 ports 1 x Intel Azalia header 1 x Buzzer 1 x IrDA header 1 x CD IN header 1 x 1394a 1 x Speaker 1 x Front panel headerBIOS FeaturesLPC 4MB, ACPI 2.0b, APM 1.2, PnP 1.0a, SMBIOS 2.3, USB 2.0Support CDDrivers, DirectX, Adobe Reader, SuperUtilities, Norton Internet SecurityStandards/ManageabilityPCI 2.3, USB2.0, DMI 2.0Special FeaturesSuperRecovery, SuperBoot, SuperBIOS-Protect, SuperStep, Fox Live Update, Superspeed, Ratio Free, Fox OneForm FactorATX (12"x9.6")
