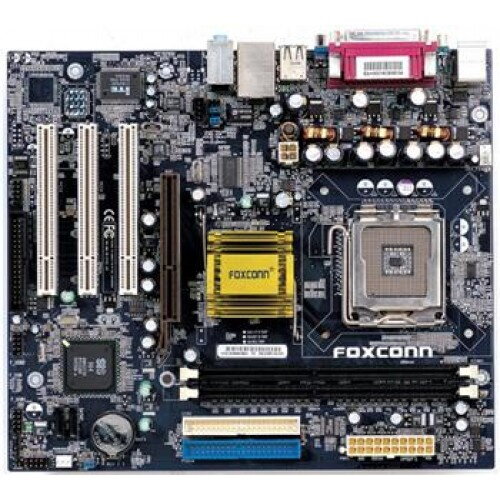

Foxconn 661M05-6LS LGA775

Processor Support Socket T (LGA775) Intel® Pentium® 4 processors

Chipset SiS 661FX+964

Front Side Bus 800 MHz / 533 MHz

Memory Support Max. 2GB Single Channel 400MHz / 333MHz / 266MHz DDR SDRAM

VGA on Die Integrated SiS Mirage™ Graphics

Expansion Slots 1x AGP8x, 3 x PCI slots

IDE Support Ultra ATA 133/100/66 x 2 drives

Serial ATA(SATA)/RAID Support 2 x Serial ATA 150 drives

Audio Realtek ALC655 controller, 5.1 channel audio (AC’97); S/PDIF-out interface (Reserve)

LAN IC Plus IP101 PHY, 10/100Mbps Ethernet Lan

IEEE1394 N/A

Back Panel I/O Ports 1 x PS/2 keyboard

4 x USB 2.0/1.1 ports

1 x PS/2 mouse

1 x RJ45 port

1 x parallel port

1 x line-in / line-out / mic port

1 x COM port

1 x VGA

Internal I/O Connectors 2 x USB 2.0 headers; support 4 ports

1 x S/PDIF out header (Reserve Only)

1 x CD-IN header

1 x COM2 header

1 x IrDA header (Reserve Only)

1 x Speaker header

BIOS Features 4Mb flash ROM, Award BIOS, PnP1.0a, DMI 2.0, WfM 2.0, SMBIOS 2.3, ACPI 1.0b

Support CD Chipset Driver, Device Driver, DirectX 9.0b, Adobe Reader6.0, Super Utilities, Norton Internet Security

Standards/Manageability PCI 2.3, USB2.0; WfM 2.0, DMI 2.0

Special Features STR (Suspend-to-RAM), STD (Suspend-to-Disk), Super Recovery, SuperBoot, Super BIOS-Protect, BIOS SuperSpeed,

Form Factor Micro ATX (9.6" x 8.3")
