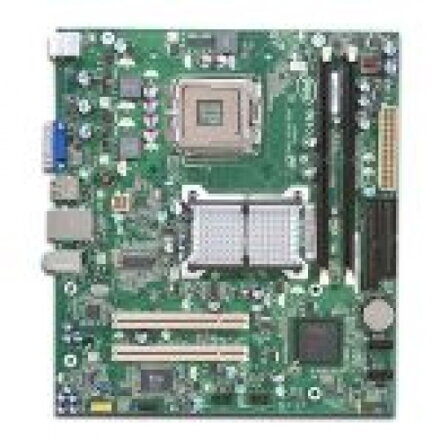

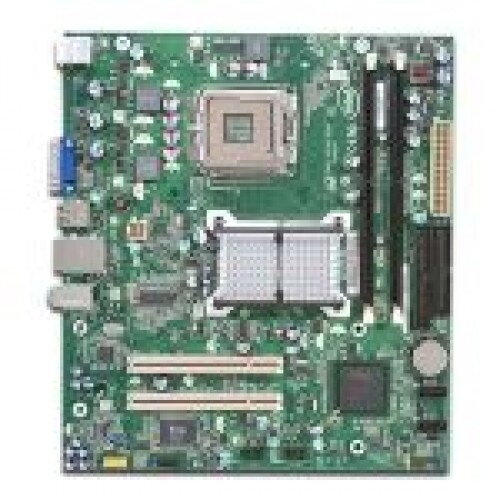

Intel D945GCPE

Processor Support for an Intel® Core™2 Duo processor in an LGA775 socket with a 1066 or 800 MHz system bus

Support for an Intel® Pentium® Dual-Core processor in an LGA775 socket with an 800 MHz system bus

Support for an Intel® Pentium® D processor in an LGA775 socket with a 800 or 533 MHz system bus

Support for an Intel® Pentium® 4 processor in an LGA775 socket with an 800 or 533 MHz system bus

Support for an Intel® Celeron® processor 400 series in an LGA775 socket with an 800 MHz system bus

Support for an Intel® Celeron® D processor in an LGA775 socket with an 533 MHz system bus



Memory Two 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets

Support for DDR2 667 MHz or DDR2 533 MHz DIMMs

Support for up to 2 GB of system memory



Chipset Intel® 945GC Express Chipset



Audio High Definition Audio subsystem in the following configuration:


Realtek* ALC662 four Channel Audio (2 + 2)



Video Intel® Graphics Media Accelerator 950 onboard graphics subsystem

I/O control Legacy I/O controller for diskette drive, serial header, and PS/2* ports

LAN support 10/100 Mbits/sec LAN subsystem using the Realtek* RTL8101E-GR Ethernet LAN controller

Peripheral interfaces Eight USB 2.0 ports

Two Serial ATA IDE interfaces

One Parallel ATA IDE interface with UDMA 33, ATA-66/100 support

One diskette drive interface

PS/2 keyboard and mouse ports



Expansion capabilities Two PCI Conventional* bus add-in card connectors



Form factor microATX (8.60 inches by 9.60 inches [218.44 millimeters by 243.84 millimeters])
