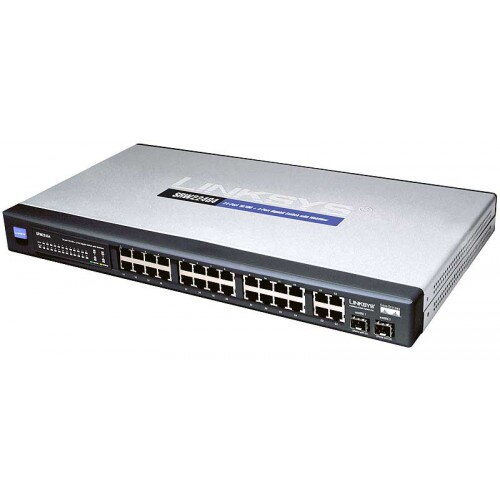

Cisco SRW224G4 24-Port 10/100 + 4-Port Gigabit Switch

Cisco SRW224G4 24-Port 10/100 + 4-Port Gigabit Switch

Trieda A

Cisco SRW224G4 24-Port 10/100 + 4-Port Gigabit Switch

36 € s DPH

30 €

Dostupnosť: Na sklade
skladom: 1 ks

Výrobca: Cisco

BrandCisco Small BusinessModelSRW224G4
SpecStandards802.3i 10BASE-T Ethernet, 802.3u 100BASE-TX Fast Ethernet, 802.3ab 1000BASE-T Gigabit Ethernet, 802.3z Gigabit Ethernet, 802.3x Flow ControlJumbo FramesUp to 1600 bytesPorts24 RJ-45 connectors for 10BASE-T and 100BASE-TX, 4 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T with 2 shared SFP slots, Auto MDI/MDI-X, Autonegotiate/Manual settingSpeed10/100Mbps + 1000MbpsMAC Address Table8KSwitching MethodStore and ForwardSecurityIEEE 802.1x: RADIUS Authentication. MD5 EncryptionFiltering: MAC-basedCablingUTP CAT 5 or better for 10BASE-T/100BASE-TX, UTP CAT 5e or better for 1000BASE-TLEDsPower, Link/Act, SpeedVLAN SupportYesPowerInternal Switching PowerDimensions16.9" x 8.0" x 1.8"Weight4.41 lbs.Temperature0ºC to 40ºC (32ºF to 104ºF)Humidity10% to 90%
FeaturesFeatures2 Shared miniGBIC ports for Optical or Copper interconnectionSimplified QoS management enabled by advanced queuing techniques using 802.1p, Diffserv or ToS traffic prioritization specificationsConfiguration and monitoring from a standard web browser with WebView managementSecure remote management of the switch via SSH and SSL secure channel network protocols802.1Q based VLANs enable segmentation of networks for improved performance and securityPrivate VLAN Edge for simplified network isolation for guests connections or autonomous networksAutomatic configuration of VLANs across multiple switches through GVRP/GARPAutomatic port configuration through auto MDI/MDIX802.1ab (LLDP) and UPnP supportUser/Network port level security via 802.1x authentication and MAC-based filteringIncreased the bandwidth (up to 8x) and added link redundancy with Link Aggregation ControlProtocol (LACP)Enhanced rate limiting capabilities provide control, including back pressure to control the rate that data that can flow in and out of a portMulticasting, broadcasting and flooding controlPort mirroring for non-invasive monitoring of switch trafficSNMP v1, v2c, v3Fully rack-mountable using the included rack-mounting hardware
