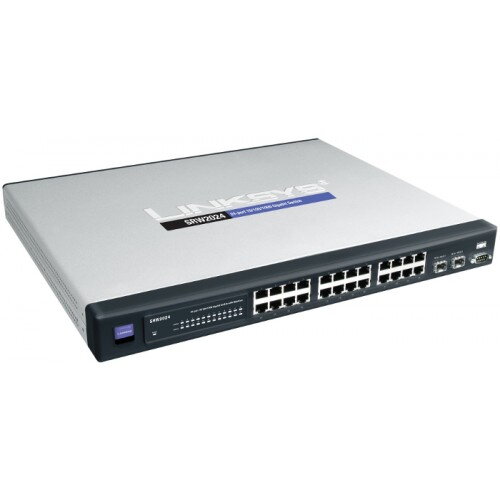

Cisco Small Business SRW2024

Model
Brand
Cisco Small Business
Model
SRW2024
Spec
Standards
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.1q
Jumbo Frames
Up to 9KB
Ports
24 x 10/100/1000 RJ-45 ports and 2 shared MiniGBIC slots
Speed
10/100/1000Mbps
MAC Address Table
8K
Buffer Memory
2MB
Switching Method
Store and Forward
Cabling
Cat5e or better
LEDs
System, Link/Activity, Gigabit
VLAN Support
Yes
Power
100-240V 0.5A
Dimensions
16.9" x 1.8" x 13.8"
Weight
7.35 lbs.
Temperature
0ºC to 50ºC (32ºF to 122ºF)
Humidity
20% - 95%, Non-condensing
Features
Features
Auto MDI/MDI-X supports cable detection on all 10/100/1000 Copper ports

Provides flow control mechanism to ensure zero packet loss. Uses backpressure for half-duplex operation and IEEE802.3x for full duplex operation.

Provides Store-and-Forward switching mechanism

Provides non-blocking switching performance

Provides Multicasting, Broadcasting and Flooding Control

Four egress queues on all switch ports.

Support for strict priority and weighted round-robin (WRR) CoS policies

Traffic classification based on Port#, VLAN priority in VLAN tagging packet

Supports 802.1q Tagged based VLAN for support of up to 64 VLANs

Supports up to 8 trunking groups

Load sharing among trunk ports based on MAC address

Port Mirroring to monitor the traffic of Mirrored ports

ACL to limit the interface and IP domain to manage the switch

Web-based configuration makes installation and setup easy



Minimum Requirements:

Cat5 Ethernet Network Cable

TCI/IP Protocol installed on each computer within the network

Network Adapter installed in each computer

Network Operating System (e.g. Windows, Linux, MacOS X)
