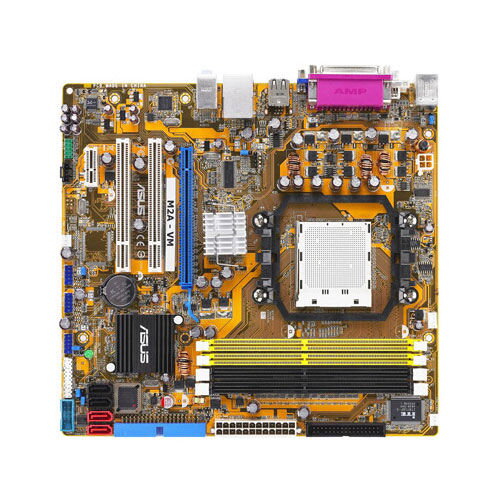

ASUS M2A-VM AM2 AMD 690G Micro ATX

CPU
Support AMD® Socket AM2+/ AM2 Phenom FX(2000MT/s)/Phenom(2000MT/s)/ Athlon 64 X2 / Athlon 64 FX / Athlon 64/ Sempron

AMD Cool 'n' Quiet Technology

AMD64 architecture enables simultaneous 32-bit and 64-bit computing

AMD Live! Ready
Chipset
AMD 690G

ATI SB600
Front Side Bus
2000 / 1600 MT/s
Memory
Dual channel memory architecture

4 x 240-pin DIMM, support max. 8GB DDR2 800/667/533 ECC and Non-ECC,un-buffered memory

*When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
VGA
Integrated ATI Radeon X1250-based graphics

Maximum shared memory of 1024 MB

Supports DVI-D with max. resolution 2560x1600 (@ 60Hz)

(It may not display 1080p smoothly when playing HD DVD and Blu-ray Disc due to current version player limit)

Supports RGB with max. resolution 2048 x 1536 (@85Hz)

Dual VGA output support:

RGB amp; DVI

Note: DVI-D can not be converted to output RGB Signal to CRT.
Expansion Slots
1 x PCI Express x16

1 x PCI Express x1

2 x PCI

Storage
1 x UltraDMA 133/100

4 x Serial ATA 3Gb/s supporting RAID 0, RAID 1,RAID10
LAN
PCIe Gb LAN
Audio
ALC883 High Definition Audio 6-channel CODEC

Supports Jack-Sensing, Enumeration, and Jack-Retasking

Supports S/PDIF out interface
Overclocking Features
SFS (Stepless Frequency Selection) from 200MHz to 400MHz at 1MHz increment

Adjustable CPU Voltage at 0.0125V increment

ASUS C.P.R.(CPU Parameter Recall)
USB
10 USB2.0/1.1 ports
Special Features
ASUS MyLogo2

ASUS CrashFreeBIOS3

ASUS EZ Flash2

ASUS Q-Fan

ASUS O.C Profile

ASUS Music Alarm
Back Panel I/O Ports
1 x Parallel

1 x PS/2 Mouse

1 x PS/2 Keyboard

1 x DVI

1 x VGA

1 x RJ45

4 x USB 2.0/1.1

6-channel Audio I/O
Internal I/O Connectors
3 x USB 2.0 connector supports additional 6 USB 2.0 ports

High Definition Front panel audio connector

COM port connector

CD audio-in connector

1 x S/PDIF output connector

CPU / Chassis/ Power Fan connectors

Chassis Intrusion connector

24-pin EATX power connector

4-pin ATX 12V Power connector
BIOS
8Mb Flash ROM, Award BIOS, PnP, DMI2.0, WfM2.0, SMBIOS 2.3
Manageability
WfM 2.0, DMI 2.0, WOL by PME, WOR by PXE, WOR by PME
O/S Compatibility
Windows XP/Vista

ASUS PC Probe II

ASUS LiveUpdate Utility
I/O shield
Form Factor
uATX Form Factor, 9.6" x 9.0" (24.5cm x 22.9cm)
