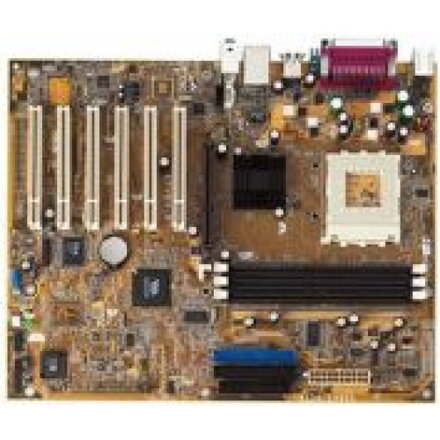

ASUS A7V8X-X

CPU Socket A for AMD Athlon XP/Athlon / Duron

Thoroughbred/ Barton Core Support

Chipset VIA KT400(A)

VIA VT8235

Front Side Bus 333 / 266 / 200MHz

Memory 3 x DDR DIMM Sockets

Max. 3 GB unbuffered PC2100 / PC1600 non-ECC SDRAM Memory (PC3200 Max. to 2 banks only / PC2700 Max to 4 banks only)

Expansion Slots 1 x AGP 8X

6 x PCI

IDE 2 x UltraDMA/133/100/66

Audio ADI 1980 6-channel CODEC

S/PDIF out interface

LAN Realtek 10/100 Mbps Ethernet PHY

USB VT8235 built-in USB2.0 ⧠6 x USB 2.0 port

Special Features ASUS MyLogo

ASUS EZ Flash

ASUS JumperFree

SFS (Stepless Frequency Selection)

ASUS C.O.P. (CPU Overheating Protection)

ASUS C.P.R. (CPU Parameter Recall)

CrashFree BIOS

Back Panel I/O Ports 1 x Parallel

1 x Serial

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x Audio I/O

1 x S/PDIF out

4 x USB 2.0

1 x RJ-45 Port

Internal I/O Connectors CPU/Chassis FAN connectors

20 pin ATX power connector

IDE LED connector

Chassis Intrusion

Game port

CD/AUX/ audio in

Front panel audio connector

1 x USB 2.0 connector supports additional 2 USB 2.0 ports

BIOS 2Mb Flash ROM, ASUS JumperFree, Award BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ASUS EZ Flash, MyLogo, ASUS CrashFree BIOS, ASUS C.P.R

Industrial Standard PCI 2.2, USB 2.0

Manageability WfM2.0, DMI2.0, WOR, WOL, Chassis Intrusion

Support Disc Drivers

ASUS PC Probe

Trend Micro PC-cillin 2002 anti-virus software

ASUS LiveUpdate Utility

Accessories User's manual

Driver CD

UltraDMA 133/100 / 66 cable

FDD cable

I/O shield

Form Factor ATX Form Factor 12 x 9.6 (30.5cm x 24.5cm)
