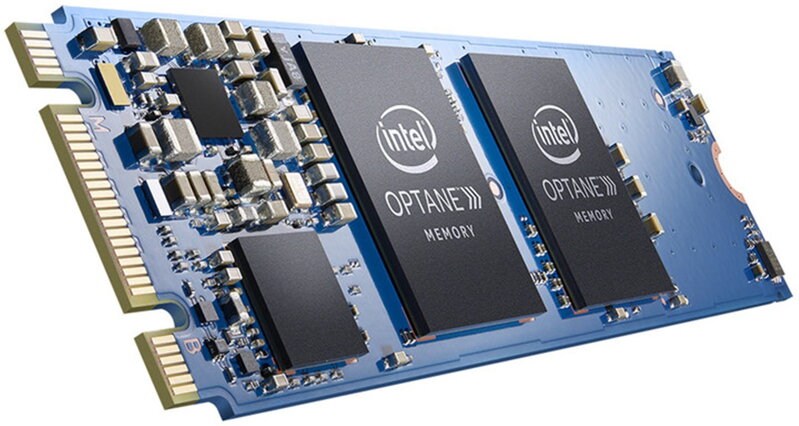

Intel Optane Memory 32GB

Product Collection
Intel® Optane™ Memory Series
Code Name
Products formerly Stony Beach
Capacity
32 GB
Marketing Status
Discontinued
Launch Date
Q1'17
Performance Specifications
Sequential Bandwidth - 100% Read (up to)
1350 MB/s
Sequential Bandwidth - 100% Write (up to)
290 MB/s
Random Read (8GB Span) (up to)
240000 IOPS (4K Blocks)
Random Write (8GB Span) (up to)
65000 IOPS (4K Blocks)
Random Read (100% Span)
240000 IOPS (4K Blocks)
Random Write (100% Span)
65000 IOPS (4K Blocks)
Power - Active
3.5 Watts
Power - Idle
1 Watt
Reliability
Vibration - Operating
2.17 Grms (5-800 Hz) MAX
Vibration - Non-Operating
3.13 Grms (5-800 Hz) MAX
Shock (Operating and Non-Operating)
1500 G / 0.5 ms
Operating Temperature Range
0°C to 70°C
Max Operating Temperature
70 °C
Minimum Operating Temperature
0 °C
Endurance Rating (Lifetime Writes)
182.5 TB
Mean Time Between Failures (MTBF)
1.6 Million
Uncorrectable Bit Error Rate (UBER)
< 1 sector per 10^15 bits read
Warranty Period
5 yrs
Supplemental Information
Additional Information
View now
Package Specifications
Form Factor
M.2 22 x 80mm
Interface
PCIe 3.0 x2, NVMe
Advanced Technologies
Enhanced Power Loss Data Protection
No
Temperature Monitoring and Logging
Yes
End-to-End Data Protection
Yes
Intel® Rapid Start Technology
Yes
Intel® Remote Secure Erase
No
