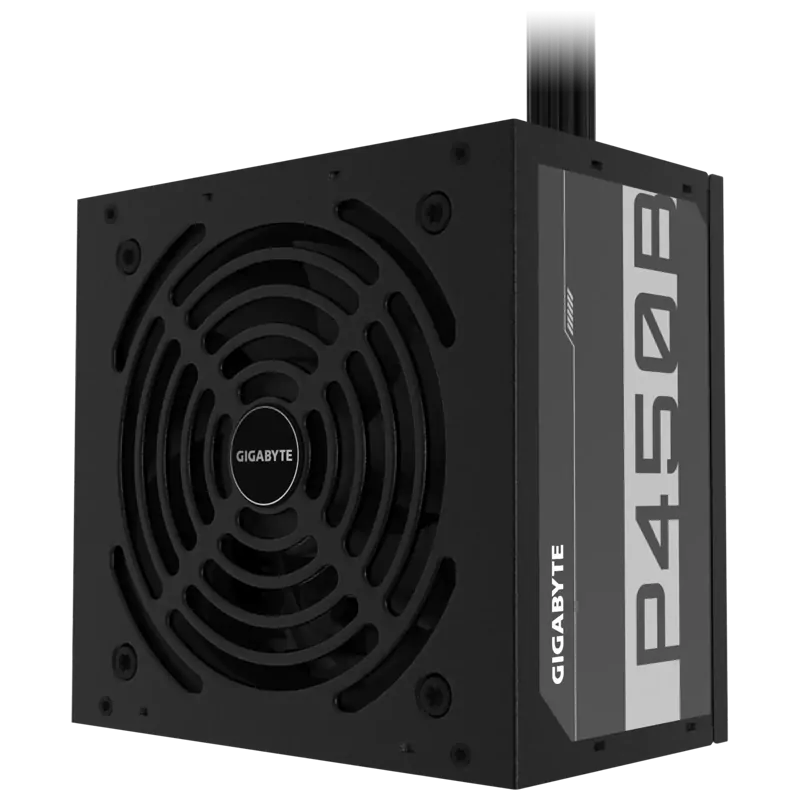

GIGABYTE P450B

80 PLUS Bronze certified
120mm Silent Hydraulic Bearing (HYB) Fan
Reliable flat cable
Single +12V rail
OVP/OPP/SCP/UVP/OCP/OTP protection

Model
P450B
Type
Intel Form Factor ATX 12V v2.31
PFC
Active PFC(>0.9 typical)
Input Voltage
100-240 Vac(full range)
Input Current
8-4 A
Input Frequency
60-50 Hz
Output Capacity
450W
Dimensions
150 x 140 x 86 mm
Fan Type
120 mm Hydraulic Bearing (HYB) Fan
80 PLUS
Bronze
Efficiency
85% at typical load
MTBF
>100,000 hours
Protections
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-500ms
Hold Up Time
>16ms
Cable Type
Flat, All black
Connectors
ATX/MB 20+4 Pin x 1 : 550mm*1
CPU/EPS 4+4 Pin x 1 : 600mm*1
PCI-e 6+2 Pin x 2 : 550mm+150mm*1
SATA x 6 : 500mm+120mm+120mm*2
4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+120mm*1
