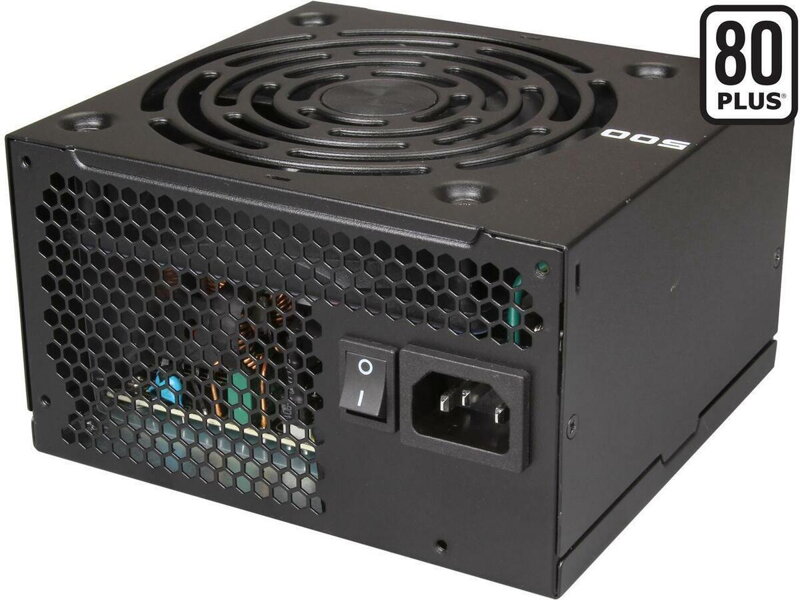

EVGA 500 W1

Cable Length
ATX Cable 1x 550mm
EPS Cable 1x 600mm
PCIe Cable 1x 550mm, 670mm
SATA Cable 2x 450mm, 570mm, 690mm
Four-Pin Peripheral Cable 1x 450mm, 570mm, 690mm, 810mm (f)
Floppy Adapter 1x
AC Power 1x 1200mm
Modular Cable Type No
Connector Quantity
24 Pin ATX 1x 24pin (20+4)
EPS (CPU) 1x 8pin (4+4)
PCIe 2x 8pin (6+2)
SATA 6x
Four-Pin Peripheral 3x
Floppy 1x
Power Specs
AC Input 100-240 VAC, 8/4A, 50-60Hz
Rail +5V +3.3V +12V +5Vsb -12V
Max Output 20A 24A 40A 3A 0.3A
120W 480W 15W 3.6W
Total 500W
Additional Details
Operating Temperature 0° to 40° C
Japanese Capacitors No
ECO Mode No
MTBF 100,000 Hours
Net Weight 3.99 lbs
Size 85mm (H) x 150mm (W) x 140mm (L)
Approvals TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement
Fan Size / Bearing 120mm Sleeve Bearing
