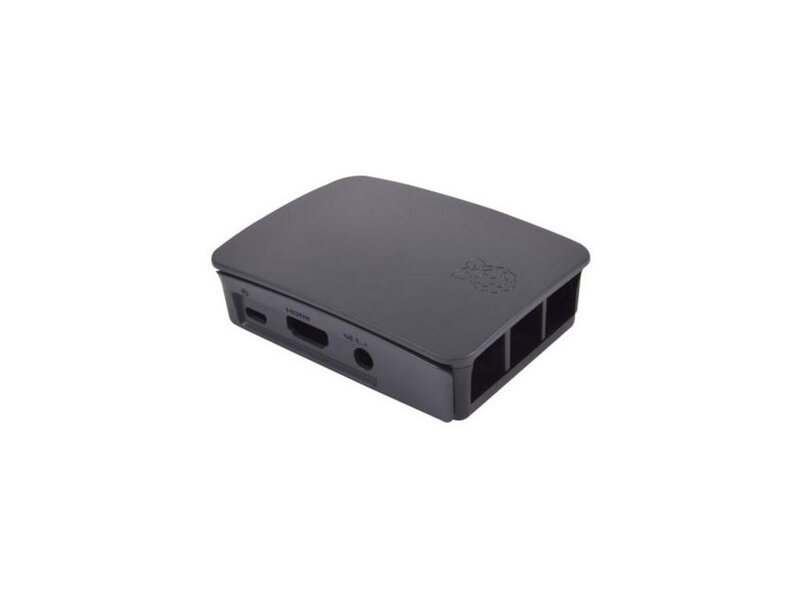

S krytom
Specifications
Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.8GHz
1GB, 2GB, 4GB or 8GB LPDDR4-3200 SDRAM (depending on model)
2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE
Gigabit Ethernet
2 USB 3.0 ports; 2 USB 2.0 ports.
Raspberry Pi standard 40 pin GPIO header (fully backwards compatible with previous boards)
2 × micro-HDMI® ports (up to 4kp60 supported)
2-lane MIPI DSI display port
2-lane MIPI CSI camera port
4-pole stereo audio and composite video port
H.265 (4kp60 decode), H264 (1080p60 decode, 1080p30 encode)
OpenGL ES 3.1, Vulkan 1.0
Micro-SD card slot for loading operating system and data storage
5V DC via USB-C connector (minimum 3A*)
5V DC via GPIO header (minimum 3A*)
Power over Ethernet (PoE) enabled (requires separate PoE HAT)
Operating temperature: 0 – 50 degrees C ambient
* A good quality 2.5A power supply can be used if downstream USB peripherals consume less than 500mA in total.
Viac z kategórie
Doplnkové informácie
| Kategória: | Počítač Raspberry |
| Prevedenie: | Mini PC |
| Operačný systém (COA štítok): | bez OS |
| Počet jadier CPU: | 4 |
| Grafická karta: | Integrovaná |
| Typ disku: | SSD |
| USB: | 2xUSB 3.0, 2xUSB 2.0 |
| VGA: | Nie |
| DVI: | Nie |
| HDMI: | Áno |
| DisplayPort: | Nie |
