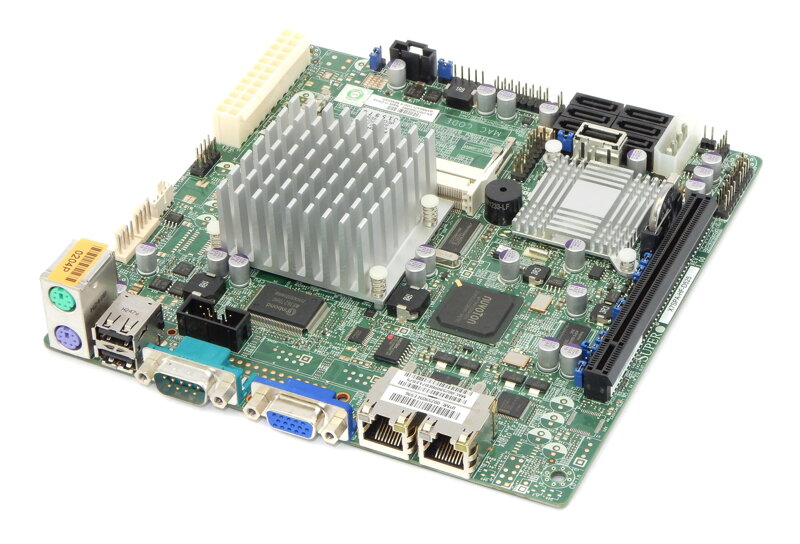

Supermicro Mini ITX MB Atom D525 X7SPA-HF

Key Features

1. Intel® Atom™ D525 (Pineview-D)
Dual Core, 1.8GHz (13W) processor
2. Intel® ICH9R Express Chipset
3. Up to 4GB single channel unbuffered,
non-ECC DDR3 800MHz SO-DIMM
4. Dual Intel 82574L Gigabit LAN ports
5. 6x SATA (3.0Gbps) Ports
RAID 0, 1, 5, 10 (Windows Only)
6. 1 (x4) PCI-E 2.0 (in x16) slot
7. 8x USB 2.0 ports (2 rear ports +
5 via headers + 1 Type A connector)
8. Integrated Matrox G200eW Video
9. Integrated IPMI 2.0 - share LAN1
10. DOM Power connector

Links & Resources

Motherboard Manual

Update Your BIOS

IPMI Firmware

Download the Latest Drivers and Utilities

Product SKUs

MBD-X7SPA-HF-D525 -O X7SPA-HF-D525 (Standard Retail Pack)
MBD-X7SPA-HF-D525 -B X7SPA-HF-D525 (Bulk Pack)

Physical Stats

Form Factor Mini ITX
Dimensions 6.75" x 6.75" (17.15cm x 17.15cm)

Processor/Cache

CPU Intel® Atom™ D525 processor
System Bus DMI

System Memory

Memory Capacity Two 204-pin SO-DIMM sockets
Supports up to 4 GB of unbuffered, non-ECC DDR3 800MHz SO-DIMM (Single Channel)
166MHz and 1333MHz memory can be used, but will operate at 800MHz
Memory Type DDR3 800MHz unbuffered, non-ECC SO-DIMM
DIMM Sizes 2GB, 1GB
Memory Voltage 1.5V only

On-Board Devices

Chipset Intel ICH9R Express chipset
Dual Intel 82574L G-bit ethernet controller
SATA Intel ICH9R SATA 3.0Gbps Controller
RAID 0, 1, 5, 10 support (Windows Only)
IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Winbond® WPCM450 BMC
Network Controllers Dual Intel 82574L Gigabit Ethernet LAN
Supports 10BASE-T, 100/1000BASE-TX, RJ45 output
Graphics Matrox G200eW video
Super I/O Winbond 83627DHG chip

Input / Output

Serial ATA 6 Serial ATA ports ( 3Gbps )
LAN 2x RJ45 LAN port
USB 8x USB 2.0 / 1.1 compatible
2 rear + 3 headers (5 ports) + 1 Type A connector
VGA D-Sub 15
Keyboard / Mouse PS/2 keyboard and mouse ports
Serial Ports 1x Fast UART 16550 serial port
1x Serial Header

System BIOS

BIOS Type 8Mb Flash EEPROM with AMI BIOS
BIOS Features Plug and Play (PnP)
DMI 2.3
PCI 2.2
ACPI 1.0 / 2.0 / 3.0
USB Keyboard support
SMBIOS 2.3

OS Compatibility

• Please see our OS Compatibility Chart

Chassis ( Optimized for X7SPA-HF-D525 )

Expansion Slots

PCI-Express 1 (x4) PCI-Express (in x16) slot

Management

Software IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Super Doctor III
Watch Dog
Power Configurations ACPI/APM Power Management
Main Switch Override Mechanism
Suspend to RAM (STR)
Power-on mode control for AC power recovery
Internal / External modem remote ring-on

PC Health Monitoring

CPU Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, VBAT, Memory, Chipset
CPU Core 1-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V
FAN Total of two 4-pin fan headers
2 x fans with tachometer monitoring
Status monitor for speed control
Status monitor for on / off control
Support 3-pin fans (without speed control)
Low noise fan speed control
Pulse Width Modulated (PWM) fan conn.
Temperature Monitoring for CPU and chassis environment
CPU thermal trip support
Thermal Control for 2 x Fan Connectors
I2C temperature sensing logic
Thermal Monitor 2 (TM2) Support
LED CPU / System Overheat LED
Other Features Chassis intrusion Detection
Chassis intrusion Header
SDDC Support
