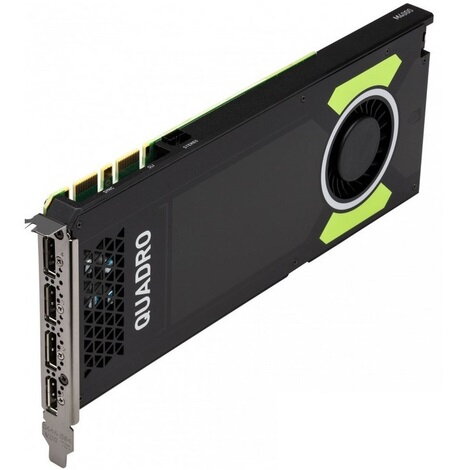

DELL nVIDIA Quadro M4000 8GB GDDR5

NVIDIA Quadro M4000 GPU specifications
Name / Brand / Architecture
Manufacturer: NVIDIA
Model: Quadro M4000
Reference card: Yes
Target market segment: Desktop Workstation
Die name: GM204
Architecture: Maxwell
Fabrication process: 28 nm
Transistors: 5.20 billion
Bus interface: PCI-E 3.0 x 16
Launch date: June 2015
Frequency
Graphics clock: 773 MHz
Memory specifications
Memory size: 8192 MB
Memory type: GDDR5
Memory clock: 1502 MHz
Memory clock (effective): 6008 MHz
Memory interface width: 256-bit
Memory bandwidth: 192.26 GB/s
Cores / Texture
CUDA: 5.2
CUDA cores: 1664
ROPs: 56
Texture units: 104
RAMDACs: 400 MHz
Electric characteristics
Maximum power draw: 120 W
Video features
Maximum digital resolution: 5120 x 3200 @ 60 Hz (Using 2 x DP)
Maximum DP resolution: 4096 x 2160 @ 60 Hz
Maximum DVI resolution: 2560 x 1600
Maximum HDMI resolution: 4096 x 2160 @ 60 Hz
Maximum VGA resolution: 2048 x 1536
Anti-Aliasing technologies: FXAA
TXAA
HDMI: Yes
HDMI version: 2.0
Performance
Pixel fill rate: 43.29 Gigapixels/s
Texture fill rate: 80.39 Gigatexels/s
Single presision compute power: 2572.54 GFLOPS
Double precision compute power: 80.39 GFLOPS
External connectors
Standard display connectors: 4 x DisplayPort
Power connectors: 1 x 6-pin
Audio input for HDMI: Yes
Dimensions
Size (length x height): 9.5 inches (241.3 mm) x 4.376 inches (111.15 mm)
Width: Dual-Slot
Other features / Support
Other features: 3D Vision ?
3D Vision Pro ?
Direct Compute
HDCP
Mosaic
Open CL support: 1.2
OpenGL support: 4.5
DirectX support: 12.0
Shader model: 5.0
