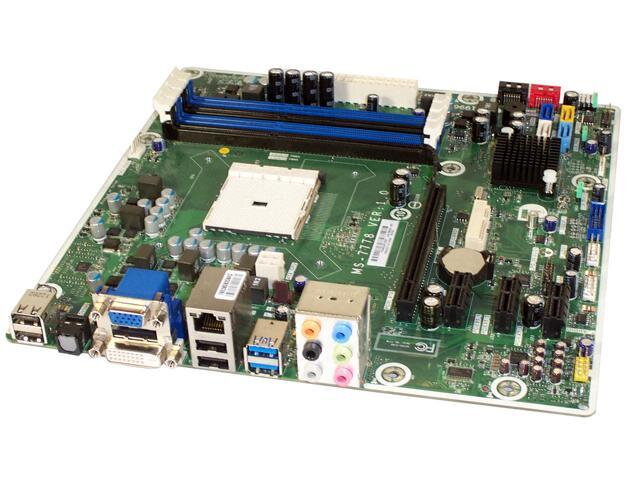

MSI MS-7778

CPU

Processor Support AMD Socket FM2. (Max 100W)

* Trinity A8-5600K, A8-5500
* Trinity A10-5800K, A10-5700
* Trinity Dual-Core A4-5300
* Trinity Dual-Core A6-5400K

Chipset
AMD A75
Integrated Graphics
ATI Radeon HD
Memory
4 * 240-pin DDR3 DIMM slots Supports Dual Channel DDR3 1866/1600/1333 MHz non-ECC, un-buffered memory
(Max 32GB on 64-bit Operating Systems)
Expansion Slots
1 * PCI Express x16 (2.0)
3 * PCI Express x1 (2.0)
1 * PCI Express Mini (half height)
Storage
6 * SATAIII 6Gb/s connectors
Supports HDDs, Internal Solid State Drive (SSD)
Audio
IDT 92HD73E – High Definition
Ethernet
Atheros AR8161x – (Gigabit)
USB
Total 12
Rear Panel
1 x S/PDIF
1 x DVI-D
1 x VGA
1 x Audio I/O
4 x USB 2.0 Ports
1 x RJ45 LAN Port
2 x USB 3.0 Ports
Internal
1 x 4-pin CPU Fan connector
1 x 3-pin SYS Rear Fan connector
1 x 4-pin ATX 12V Power connector
1 x 24-pin ATX Power connector
1 x Front Audio header
1 x Front Panel header
1 x SPDIF output connector
1 x Clear CMOS jumper
1 x Password jumper
1 x USB 3.0 header
2 x USB 2.0 headers
BIOS

Dimension
(9.6 x 9.6 inches) – Micro-ATX

+I/O shield krytka
