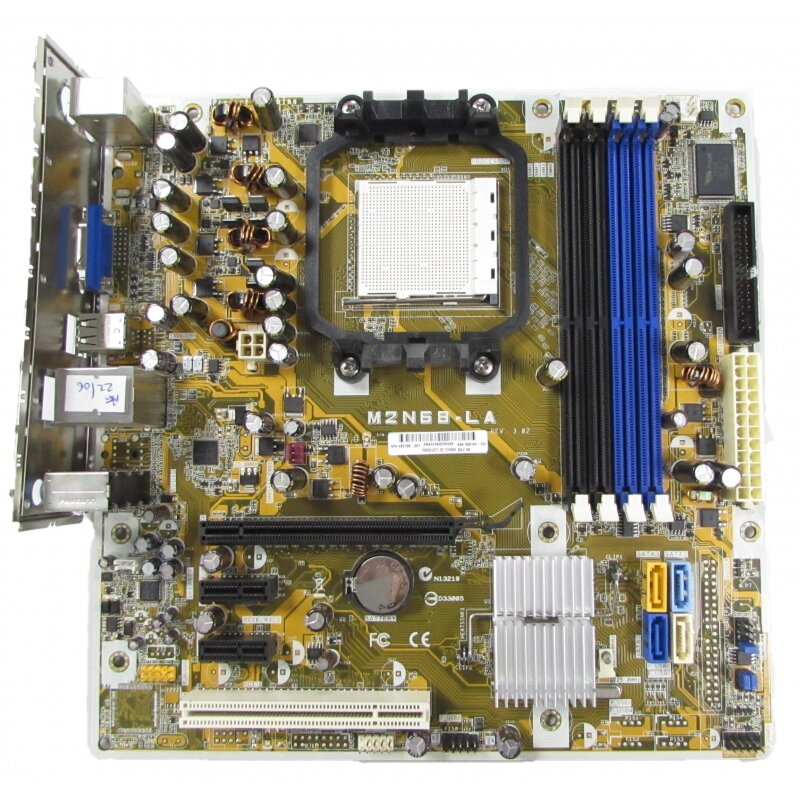

HP M2N68-LA

Motherboard description

Manufacturer's motherboard name: Asus M2N68-LA
HP/Compaq name: Narra2-GL8E

Form Factor

Micro-ATX: 24.4 cm (9.6 inches) x 24.4 cm (9.6 inches)

Chipset

NVIDIA GeForce 6150SE nForce 430

Front-side bus speed

2000MT/s (2.0 GT/s)

Processor upgrade information
Socket type: AM2
Motherboard supports the following processor upgrades:

Athlon 64 X2 with Dual Core technology up to 5600+ (up to 89 watt)
Athlon 64 less than 4000+
Sempron less than 3800+

Memory upgrade information

Dual channel memory architecture
Four 240-pin DDR2 DIMM sockets
Supported DIMM types:
PC2-4200 (533 MHz)
PC2-5300 (667 MHz)
PC2-6400 (800 MHz)
Non-ECC memory only, unbuffered
supports 2GB DDR2 DIMMs
Supports up to 8 GB on 64 bit PCs
Supports up to 4 GB* on 32 bit PCs
32 bit PCs cannot address a full 4.0 GB of memory.

Video
Integrated graphics using nVidia GeForce 6150SE
Audio
Integrated Realtek ALC888S Audio
Network
LAN: 10-Base-T
Expansion Slots

One PCI Express x16
One PCI Express x1
Two PCI

I/O Ports
Internal Connectors

One 24-pin ATX power connector
One 4-pin ATX power connector
One PATA connector
Four SATA connectors
Two 12v fan connectors for CPU fan and PC fan
One 9-pin header for power button, reset button, power LED, and HDD LED
One SPDIF digital audio output header
One front line input connector (interrupts line input on back panel, Vista capable, requires matching front audio jack module)
One 9-pin audio header for headphone-out and microphone-in (yellow, Vista capable, requires matching front audio jack module)
Four USB headers supporting 6 additional USB 2.0 ports or devices
One 1394a header
One Intel high-definition Audio/Modem Link (not used by HP)
One jumper for resetting BIOS settings
One jumper to disable BIOS password checking
