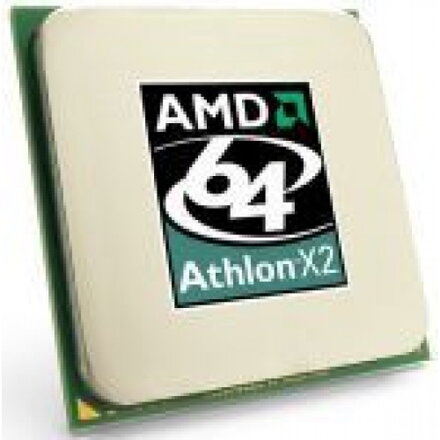

AMD Athlon 64 X2 5200B, Socket AM2

General information
Type CPU / Microprocessor
Market segment Desktop
Family
AMD Athlon 64 X2
Model number ? 5200B
CPU part number

ADO520BIAA5DO is an OEM/tray microprocessor

Stepping codes CAAIG NAA9G NAAIG
Frequency ? 5200+ (rated)
2700 MHz (real)
Clock multiplier ? 13.5
Package 940-pin organic microPGA
Socket Socket AM2
Introduction date Apr 28, 2008
Price at introduction $110
Architecture / Microarchitecture
Microarchitecture K8
Platform Perseus
Processor core ? Brisbane
Core stepping ? BH-G2
CPUID 60FB2
Manufacturing process 0.065 micron silicon-on-insulator (SOI) technology
221 million transistors
Data width 64 bit
The number of CPU cores 2
The number of threads 2
Floating Point Unit Integrated
Level 1 cache size ? 2 x 64 KB 2-way set associative instruction caches
2 x 64 KB 2-way set associative data caches
Level 2 cache size ? 2 x 512 KB exclusive 16-way set associative caches
Physical memory 1 TB
Virtual memory 256 TB
Multiprocessing Uniprocessor
Extensions and Technologies

MMX instructions
Extensions to MMX
3DNow! technology
Extensions to 3DNow!
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
AMD64 / AMD 64-bit technology ?
AMD-V / AMD Virtualization technology

Security Features

EVP / Enhanced Virus Protection ?

Low power features

Cool'n'Quiet technology
Halt state
Stop Grant state ?

Integrated peripherals / components
Integrated graphics None
Memory controller The number of controllers: 1
Memory channels (per controller): 2
Memory channels (total): 2
Supported memory: DDR2
Other peripherals

HyperTransport 2.0 technology

Electrical / Thermal parameters
V core ? 1.325V / 1.35V / 1.375V
Maximum operating temperature ? 68°C
Thermal Design Power ? 65 Watt
