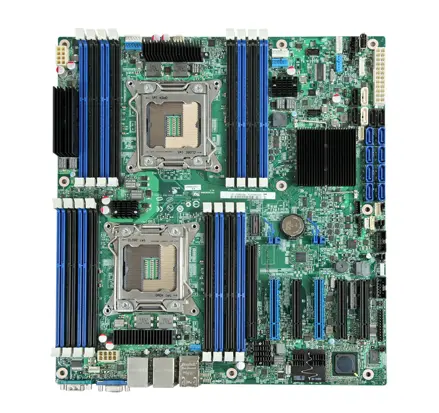

Intel® Server Board S2600CP

Essentials
Download Specifications
Product CollectionIntel® Server Board S2600CP Family
Code NameProducts formerly Canoe Pass
StatusDiscontinued
Launch Date Q1'12
EOL AnnounceWednesday, December 21, 2016
Last OrderFriday, June 30, 2017
Last Receipt AttributesTuesday, October 31, 2017
Limited 3-year WarrantyYes
Extended Warranty Available for Purchase (Select Countries)Yes
Additional Extended Warranty DetailsDual Processor Board Extended Warranty
# of QPI Links 2
Compatible Product SeriesIntel® Xeon® Processor E5-2600 v2 Family
Board Form FactorSSI EEB 12" x 13"
Chassis Form Factor4U Rack or Pedestal
SocketSocket R
Integrated Systems AvailableNo
Integrated BMC with IPMI IPMI 2.0
Rack-Friendly BoardYes
TDP 135 W
Included ItemsIntel® Server Board S2600CP2 supporting 16 DIMMs available in a 10-pack and 5-pack. The 5-pack also includes (5) DVDs and (5) Quick Start Guides
Board ChipsetIntel® C602 Chipset
Target MarketSmall and Medium Business
Supplemental Information
Embedded Options Available Yes
DatasheetView now
DescriptionA mainstream server board supporting two Intel® Xeon® E5-2600 processors and 16 DIMMs with two 1Gb Ethernet ports, and six x8 electrical PCIe Gen3 IO slots. Up to 8 SCU ports plus 2 SATA 6Gb ports and 4 SATA 3Gb ports with storage activation key.
Memory Specifications
Max Memory Size (dependent on memory type) 512 GB
Memory Types DDR3 ECC UDIMM 1333/1600, RDIMM 1066/1333/1600/1866, LRDIMM 1333/1600/1866
Max # of Memory Channels 8
Max Memory Bandwidth 119.5 GB/s
Physical Address Extensions 46-bit
Max # of DIMMs 16
ECC Memory Supported ‡ Yes
Processor Graphics
Integrated Graphics ‡ Yes
Graphics Output VGA
Discrete GraphicsSupported
Expansion Options
Max # of PCI Express Lanes 48
PCI Express Revision 3.0
PCIe x8 Gen 3 5
PCIe x16 Gen 3 1
I/O Specifications
# of USB Ports5
USB Revision 2.0
Total # of SATA Ports 14
RAID Configuration Up to SW Raid 5 (LSI + RSTE)
# of Serial Ports 2
# of LAN Ports 2
Integrated LAN 2x 1GbE
Firewire Yes
Embedded USB (eUSB) Solid State Drive Option Yes
Integrated SAS Ports 8
Integrated InfiniBand* No
Package Specifications
Max CPU Configuration2
Advanced Technologies
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® Remote Management Module Support Yes
Intel® Node Manager Yes
Intel® Quick Resume Technology No
Intel® Quiet System Technology No
Intel® HD Audio Technology No
Intel® Matrix Storage Technology No
Intel® Rapid Storage Technology No
Intel® Rapid Storage Technology enterprise Yes
Intel® Fast Memory Access Yes
Intel® Flex Memory Access Yes
Intel® I/O Acceleration Technology Yes
Intel® Advanced Management Technology Yes
Intel® Server Customization Technology Yes
Intel® Build Assurance Technology Yes
Intel® Efficient Power Technology Yes
Intel® Quiet Thermal Technology Yes
Intel® Transparent Supply Chain
TPM Version 1.2
Security & Reliability
Intel® AES New Instructions Yes
Intel® Trusted Execution Technology ‡ Yes
