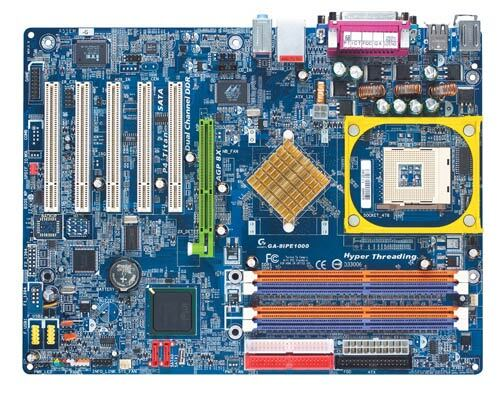

GIGABYTE GA-8IPE1000-G

CPU
Socket 478 for Intel® Pentium® 4 processor.
Front Side Bus
800 / 533/400 MHz FSB
Chipset
North Bridge : Intel® 865PE MCH
South Bridge : Intel® ICH5
Integrated Peripherals :
Marvell Gigabit Ethernet Controller
Realtek ALC850 CODEC
Memory
Type: Dual Channel DDR 400 / 333 / 266 support
Max capacity: 4 GB*
DIMM slots: 4
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
Expansion Slots
1 x AGP 8x slot
5 x PCI slots (PCI 2.3 compliant)
Internal I/O Connectors
2 x Serial ATA ports
2 x UltraDMA 100/66 Bus Master IDE
1 x FDD
2 x USB 2.0 (supports 4 ports by cable)
CD/AUX in
1 x Game port pin header
Back Panel Connectors
4 x USB 2.0 ports
1 x RJ45 Lan port
1 x LPT port
2 x COM ports
3 x Audio ports (Line-in / Line-out / MIC)
2 x PS/2 ports (Keyboard/Mouse)
H/W Monitoring
ITE 8712F
System health status auto-detect and report by BIOS
Hardware detecting and reporting for case open, power-in voltage, CPU voltage, and fan speed.
BIOS
3M bit flash ROM, Award BIOS
Bundled Software
Norton Internet Security 2003
Norton Anti Virus™
Norton™ Personal Firewall
Norton™ Privacy Control
Norton™ Parental Control
Norton™ Spam Alert
GIGABYTE Windows Utility Manager
Adobe Acrobat Reader
Form Factor
ATX
30.5cm x 23.0cm
Driver
Intel® chipset software installation utility
Marvell LAN driver
Realtek audio driver
USB2.0 driver
Other Features
Xpress Install
Xpress Recovery 2
Xpress BIOS Rescue
EasyTune™ 4
@BIOS
Q-Flash™
