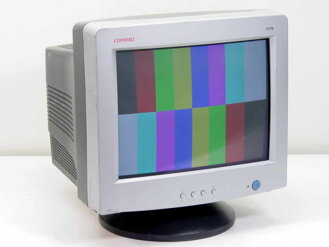

Compaq V570

SPECS
GENERAL
Dimensions (WxDxH)14.2 in x 15.4 in x 14.8 in
Display TypeCRT monitor / CRT
Aspect Ratio4:3
Native Resolution1280 x 1024 at 60 Hz
Factory Preset Resolution Modes1024 x 768 / 85 Hz
1024 x 768 / 75 Hz
800 x 600 / 100 Hz
800 x 600 / 85 Hz
800 x 600 / 75 Hz
640 x 480 / 120 Hz
640 x 480 / 85 Hz
640 x 480 / 75 Hz
720 x 400 / 70 Hz
1280 x 1024 / 60 Hz
Controls & AdjustmentsColor temperature, power on/off, adjust +/-
Color Temperature9300K, 6550K
Viewable Size13.7"
Pixel Pitch0.28 mm
Horizontal Refresh Rate70 kHz
Video Bandwidth108 MHz
On-Screen ControlsContrast, brightness, H/V-position, H/V-size, pin-balance, degauss, trapezoid, parallelogram, language select, recall settings, rotation
Vertical Refresh Rate150 Hz
ManufacturerHP
CONNECTIVITY
Connections1 x display / video - VGA - 15 pin HD D-Sub (HD-15) - 1
POWER DEVICE
Typepower supply
Nominal VoltageAC 120/230 V
Frequency Required50/60 Hz
Power Consumption Operational75 Watt
POWER
Power Consumption Stand by / Sleep5 Watt
Power Supplyinternal
CHASSIS
Built-in Devicesnone
INTERFACE PROVIDED
Typenone
DISPLAY
Image Aspect Ratio4:3
Video Bandwidth108 MHz
Front Panel Controlsadjust +/-, power on/off
On-Screen ControlsH/V-position, H/V-size, brightness, contrast, degauss, language select, none, parallelogram, pin-balance, recall settings, rotation, trapezoid
TypeCRT monitor
MISCELLANEOUS
Controls & Adjustmentscolor temperature
Colorwhite
VIDEO INPUT
Digital Video Standardnone
Analog Video Formatnone
Analog Video SignalRGB
SYSTEM REQUIREMENTS
OS Requirednone
Image Aspect Ratio4:3
ENVIRONMENTAL PARAMETERS
Min Operating Temperature50 °F
Max Operating Temperature104 °F
Humidity Range Operating20 - 80%
DIMENSIONS & WEIGHT
Width14.2 in
Depth15.4 in
Height14.8 in
Weight26.46 lbs
HEADER
BrandCompaq
Product LineCompaq
ModelV570
Country KitsEurope
Packaged Quantity1
CompatibilityMac, PC
INTERFACE REQUIRED
Connector Type15 pin HD D-Sub (HD-15)
Genderfemale
Connector Qty1
PROJECTOR
Max V-Sync Rate150 Hz
Max H-Sync Rate70 KHz
