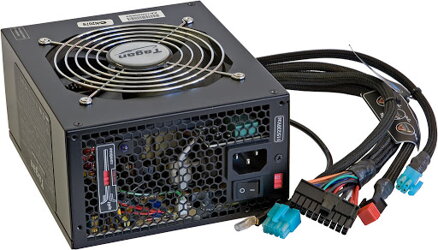

Tagan TG480-U15

SPECS
GENERAL
Specification ComplianceATX12V 2.01/ EPS12V
ManufacturerTagan Technology Co., Ltd
POWER DEVICE
Input Voltage RangeAC 100 - 240 V
Power Output Connectors Details4 x 15 pin Serial ATA power
2 x 6 pin PCI Express power
1 x power 24 pin ATX with detachable 4 pin section
2 x power 4 pin ATX12V connector
1 x 4 pin mini-power connector
3 x 4 pin internal power
Output Voltage+3.3, ±5, ±12 V
Power Capacity480 Watt
Frequency Required50/60 Hz
Specification ComplianceATX12V 2.01/ EPS12V
Power Provided480 Watt
MISCELLANEOUS
FeaturesOvercurrent protection, overvoltage protection
MTBF100000 hour(s)
Cooling System120 mm fan
ENVIRONMENTAL PARAMETERS
Min Operating Temperature32 °F
Max Operating Temperature122 °F
HEADER
BrandTagan
Product LineTagan Easycon Series
ModelTG480-U15
Packaged Quantity1
CompatibilityPC
DIMENSIONS & WEIGHT
Width5.9 in
Depth6.3 in
Height3.4 in
Weight5.07 lbs
