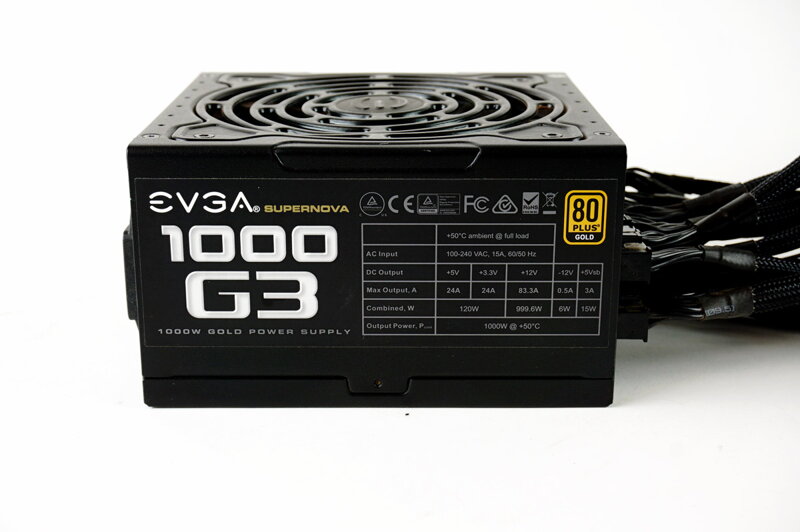

Evga Supernova 1000 G3

CABLE LENGTH
ATX Cable 1x 600mm (m)
EPS Cable 2x 700mm (m)
PCIe Cable 2x 700mm, 3x 700mm, 850mm (m)
SATA Cable 4x 550mm, 650mm, 750mm (m)
Four-Pin Peripheral Cable 1x 550mm, 650mm, 750mm, 850mm (m)
Floppy Adapter 1x 100mm
AC Power 1x 1500mm (m)
Modular Cable Type Full
CONNECTOR QUANTITY
24 Pin ATX 1x
EPS (CPU) 2x 8pin (4+4)
PCIe 8x 8pin (6+2)
SATA 12x
Four-Pin Peripheral 4x
Floppy 1x
POWER SPECS
AC Input 100 - 240 VAC, 15A, 50 - 60 Hz
Rail +3.3V +5V +12V +5Vsb -12V
Max Output 24A 24A 83.3A 3A 0.5A
83.3A
120W 999.6W 15W 6W
Total 1000W @ +50C
ADDITIONAL DETAILS
Operating Temperature 0° to 50° C
Japanese Capacitors 100%
ECO Mode Yes
MTBF 100,000 Hours
Net Weight 6 lbs
Size 85mm (H) x 150mm (W) x 150mm (L)
Approvals TUV, CB, CE, FCC, RCM, cTUVus, CCC, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement
Fan Size / Bearing 130mm Hydraulic Dynamic Bearing
