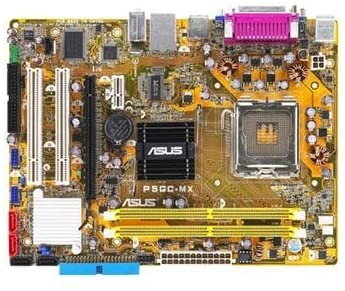

ASUS P5GC-MX/1333

CPU
LGA775 socket for Intel® Core™2 Duo / Pentium® D / Pentium® 4 / Celeron® D Processors
Compatible with Intel® 05B/05A/06 processors
Intel® Hyper-Threading Technology ready
* Refer to www.asus.com for Intel CPU support list
Chipset
Intel® 945GC(A2) / ICH7
Front Side Bus
*1333 / 1066 / 800 / 533 MHz
(*1333 MHz when overclocking)
Memory
2 x DIMM, max. 4GB, DDR2 667/533 MHz, non-ECC, un-buffered memory
Dual channel memory architecture
* Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List)
**When installing total memory of 4GB capacity or more, WindowsR 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots
1 x PCI-E x16 @16
1 x PCI-E x1
2 x PCI 2.2
VGA
Intel Graphics Media Accelerator 950
Max. resolution:2048x1536@75Hz
Max. Vertical Refresh Rate:85Hz@ up to 1920x1440
Storage
Southbridge:
- 1 x UltraDMA 100/66/33
- 4 x Serial ATA 3Gb/s
LAN
PCIe 10/100M LAN controller
Audio
Realtek ALC883, 6-CH High-Definition Audio CODEC
USB
8 x USB2.0 ports (4 ports at mid-board, 4 ports at back panel)
Special Features
ASUS CrashFree BIOS 2
ASUS Q-Fan
ASUS EZ Flash
ASUS MyLogo
Back Panel I/O Ports
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x VGA
1 x Serial port
1 x Parallel port
1 x LAN (RJ45) port
4 x USB 2.0
6 Channel Audio I/O
Internal I/O Connectors
2 x USB connectors support additional 4 USB ports
1 x Floppy disk drive connector
1 x IDE connector
4 x SATA connectors
1 x CPU/ Chassis Fan connector
Front panel High Definition audio connector
1 x S/PDIF Out connector
Chassis Intrusion connector
CD audio in
24-pin ATX Power connector
4-pin ATX 12V Power connector
System Panel
BIOS
4 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3
Manageability
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME
O/S Compatibility
Windows Vista/XP/2000
Accessories
1 x UltraDMA 100/66 cable
1 x Floppy disk drive cable
1 x SATA cable
1 x SATA Power cable
I/O Shield
User's manual
Support Disc
Drivers
ASUS PC Probe II
ASUS Update
Anti-virus software
Form Factor
uATX Form Factor, 9.6"x 7.4" (24.5cm x 18.8cm)

+I/O shield krytka
