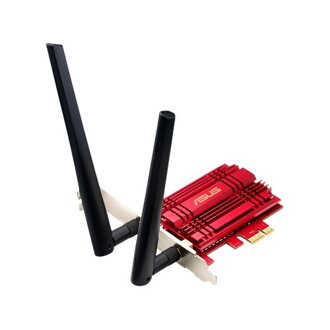

ASUS PCE-AC56 802.11ac WiFi PCI-E x1

Instant 802.11ac Wi-Fi upgrade for your desktop PC: no more messy Ethernet cables needed.
Next-generation 802.11ac chipset for super-fast connections up to 867 Mbps
Selectable dual-band 2.4 GHz/ 5 GHz operation, backwards-compatible with all existing devices
Broadcom® TurboQAM™ technology gives 33% faster 802.11n performance, with speeds up to 400 Mbps
High-power design reduces wireless dead zones with 150% greater coverage
Specially designed heatsink ensures stable and reliable continuous operation

Product Segment
AC1300 enhanced AC performance with TurboQAM : 400+867 Mbps
Interface
PCI Express
Data Rate
802.11 ac : downlink up to 867 Mbps, uplink up to 867 Mbps (20/40/80MHz)
802.11 a/b/g/n : downlink up to 400 Mbps, uplink up to 400 Mbps (20/40MHz)
Antenna
2 x R SMA Antenna
Operating Frequency
2.4 GHz / 5 GHz
Operation Channel
11 for N. America, 13 Europe (ETSI)
Security
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise
Management
Wireless Configuration
Modulation
64QAM, 16QAM, CCK, DQPSK, DBPSK, OFDM
Utilities
Wireless setting
Certificates
CE, FCC, C-Tick, IC
Dimensions
120.9 x 99.1 x 21.6 ~ cm (LxWxH) (Without Bezel)
Weight
105 g (Device Only)
Environmental
Operating Temperature: 0 °C to 40 °C ( °F to ºF)
Storage Temperature: -20 ° to 65 ° C ( °F to °F)
Operating Humidity: 10 % to 90 % (Non-condensing)
Storage Humidity: 10 % to 90 % (Non-condensing)
OS Support
Windows® 10 , 32bit/64bit
Windows® 8.1 , 32bit/64bit
Windows® 8 , 32bit/64bit
Windows® 7 , 32bit/64bit
Windows® Vista , 32bit/64bit
Windows® XP , 32bit/64bit
Package Content
Dipole Antenna x 2
External magnetic antenna base
Low Profile Bracket
Support CD
Warranty card
Wireless LAN Adapter
