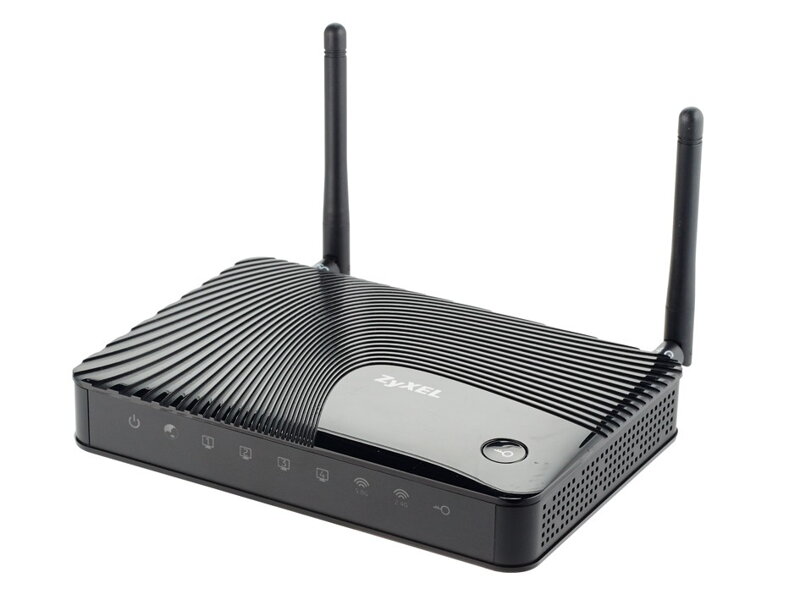

ZyXEL NBG6503

System Specifications
Wirless Standard

802.11 b/g/n 2.4 GHz
802.11 a/n/ac 5 GHz

Wireless Transfer Rate

Transmit:
300 Mbps* for 2.4 GHz
433 Mbps* for 5 GHz
Receive:
300 Mbps* for 2.4 GHz
433 Mbps* for 5 GHz

WLAN Features

Router/AP mode
Wi-Fi Protected Setup (WPS)
Wi-Fi Multimedia (WMM)
Auto channel selection
Wireless scheduling
Wireless output power management

Routing

Network Address Translation (NAT)
WAN connection type: static IP, DHCP, PPPoE, PPTP
DHCP server/client
IGMP v1/v2
Dynamic DNS
Bandwidth management
IP/Application port based QoS
Auto-IP change

VPN Pass-through

IPSec/PPTP/L2TP

Firewall

Deny of Service (DoS) prevention

System Management

Online firmware upgrade
UPnP

Wireless Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2- PSK
MAC address filtering

Hardware Specifications

WAN: One 10/100 Mbps Ethernet RJ-45 port with auto MDI/MDIX support
LAN: Four 10/100 Mbps Ethernet RJ-45 ports with auto MDI/MDIX support
LED Indicators:
Power
WAN
LAN (1 - 4)
Wireless (2.4 GHz)
Wireless (5 GHz)
WPS
Two detachable antennas
Buttons:
Power on/off button
Wireless on/off button
WPS button
Reset button
Power: 12 V DC, 1 A
Power consumption: 8 watt max.
Front Panel

Rear Panel

Physical Specifications

Item dimensions (W x D x H): 159 x 111 x 23 mm (6.26" x 4.37" x 0.91")
Item weight: 230 g (0.51 lb.)
Packing dimensions (W x D x H): 272 x 194 x 60 mm (10.71" x 7.64" x 2.36")
Packing weight: 500 g (1.1 lb.)

Environmental Specifications

Operating Environment
Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 10% to 90% (Non-condensing)
Storage Environment
Temperature: -30°C to 70°C (-22°F to 158°F)

Humidity: 10% to 95% (Non-condensing)

Certification

Safety: CE-LVD
EMC: CE, FCC, IC

Package Contents

Wireless router
Two detachable antennas
Power adapter

* The maximum wireless data transfer rates of up to 300 Mbps at 2.4 GHz and 433 Mbps at 5 GHz in simultaneous transmission are derived from the IEEE Standard 802.11 specifications. Actual data transfer rates may vary from network conditions including: distance, network traffics, building site material/construction, interference from other wireless devices and other adverse factors.
