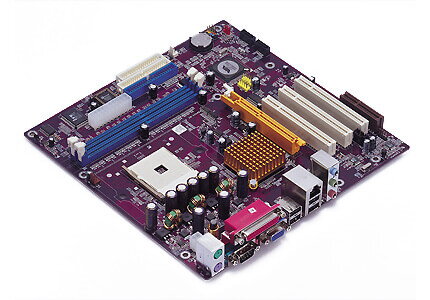

ECS K8M800-M2

CPU
Socket 754 for AMD Athlon™ 64/Sempron™ processor
High-performance Hyper Transport CPU interface.
Support transfer rate of 1600/1200/800/400 mega-transfers per second.
CHIPSET
VIA® K8M800& VT8237
North Bridge: VIA® K8M800
South Bridge: VIA® VT8237
GRAPHICS
Integrated S3 UniChrome Pro 2D/3D Graphics
Share memory : 64MB
MEMORY
2 x 184-pin DDR DIMM socket support up to 2 GB
Support DDR400/333/266/200 DDR SDRAM
EXPANSION SLOT
1 x AGP 8X/4X slot
3 x PCI slots
STORAGE
Support by VIA® VT8237
4 x Ultra DMA133/100/66 devices
2 x Serial ATA devices
RAID0 & RAID1 configuration
AUDIO
Realtek ALC655 6-Channel audio CODEC
Compliant with AC'97 2.3 specification
LAN
VIA® VT6103L 10/100 Mbps Fast Ethernet PHY
REAR PANEL I/O
1 x PS/2 keyboard & PS/2 mouse connectors
4 x USB ports
1 x RJ45 LAN connector
1 x VGA port
1 x Parallel port (LPT)
1 x Serial port (COM1)
1 x Audio port (Line-in, Line-out, Mic-in)
INTERNAL I/O CONNECTORS & HEADERS
1 x 20-pin ATX Power Supply Connector & 4-pin 12V Connector
1 x FDD connector supports one 360K~2.88MB FDD
2 x IDE connectors
2 x Serial ATA connectors
2 x USB 2.0 headers support additional 4 USB 2.0 Ports
1 x Speaker header
1 x SPDIF out header
1 x Front panel switch/LED header
1 x Front panel audio header
CD in/ AUX in headers
CPUFAN/CASFAN connectors
SYSTEM BIOS
Award BIOS with 4Mb Flash ROM
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
Supports ACPI revision 1.0 specification
FORM FACTOR
Micro-ATX Size, 244mm*200mm
